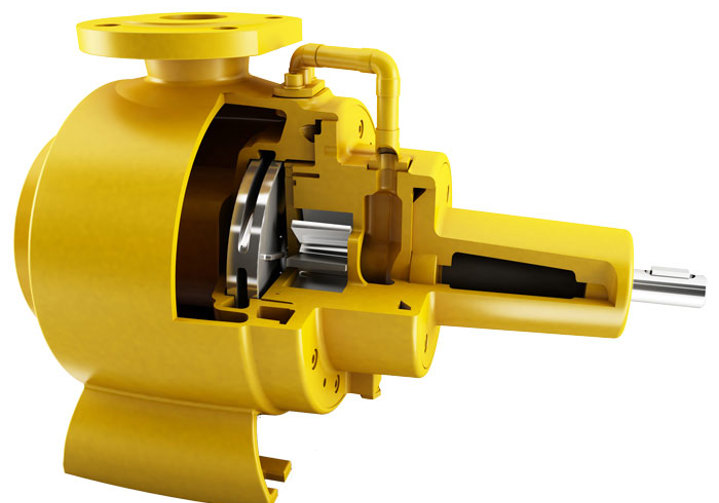

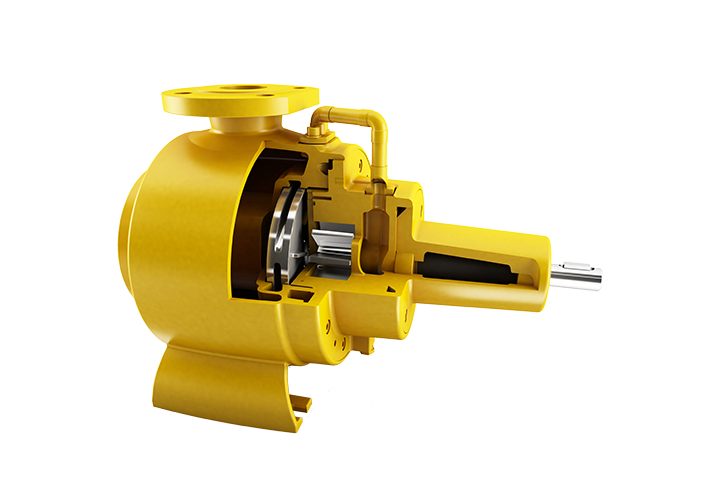

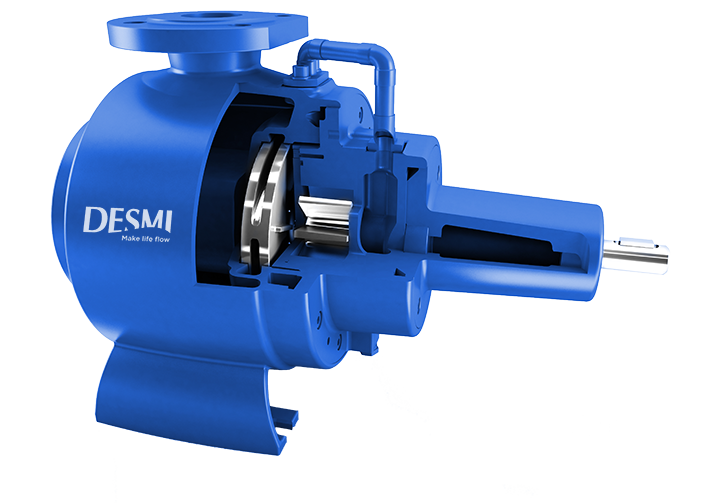

Modular S Stripping Pump
Self-priming Centrifugal Pump, DESMI Modular S
The series of DESMI stripping pumps can be used for emptying ballast tanks, when main ballast pump is stopped. Many existing vessels use ejectors for stripping purposes, but the DESMI stripping pump is a cheaper and reliable alternative for this purpose
The DESMI stripping pumps can be supplied in various combinations: As free shaft end, mounted on base plate with diesel engine, hydraulic motor or in a close-coupled design with electric motor. Each version meets the requirements for compact and reliable pumps. For optimum flexibility, the pump is designed in such a way that only the coupling and the motor flange have to be changed in order to fit the selected motor.

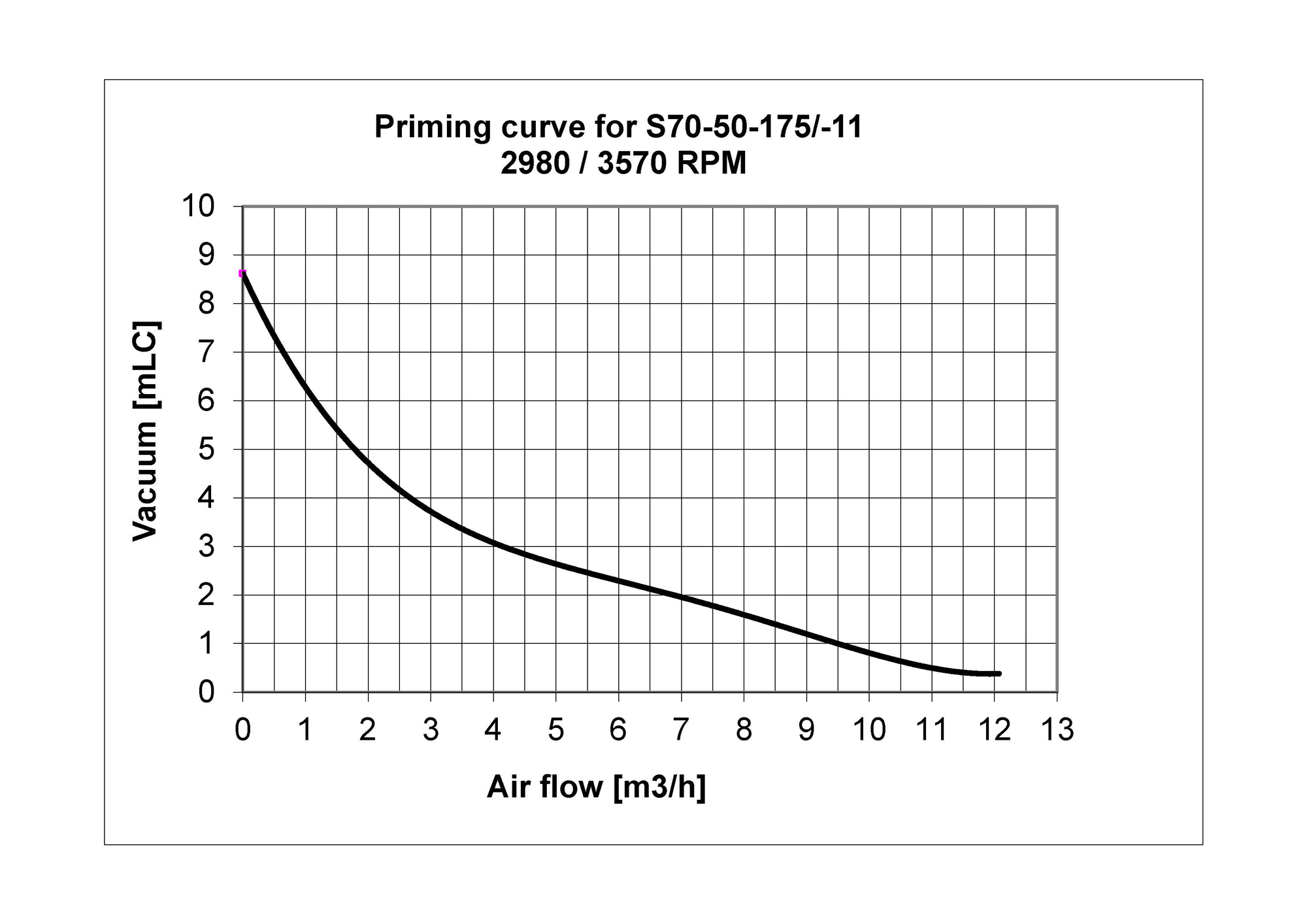

The stripping pump creates enough vacuum to evacuate all air from an empty suction pipe and lift the water 7 metres up to the pump.
Applications
- Stripping pump for ballast tanks
- Bilge pump
- Fire pump
- Wash-deck pump
- General service pump
| Material Specification | A | D |
| Pump casing | Cast iron GG 20 | Bronze |
| Impeller shaft wearing | NiAlu-bronze | NiAlu-Bronze |
|
Shaft |
Acid-proof stainless steel AISI 329 | Acid-proof stainless steel AISI 329 |
| Bearing housing | Cast iron GG 20 | Cast iron GG 20 |
| Suction piece | Cast iron GG 20 | Bronze |
| Non-return flap | Nitrile rubber | Nutrile rubber |
| Shaft seal cover | Cast iron GG 20 | Bronze |
| Mechanical shaft seal | Carbon/ceramics | Carbon/ceramics |
