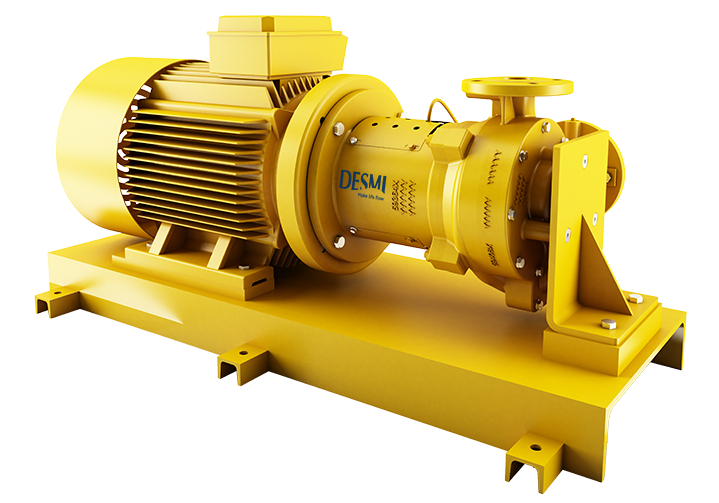

TSLH Centrifugal Pump
Two-stage horizontal centrifugal pump
The pump is a two-stage horizontal centrifugal pump equipped with stainless steel shaft,
mechanical shaft seal, and closed impeller.
Various application such as boiler water supply, ballast water back flush, sprinkler, fire water jockey, EGCS demist cleaning, industrial cleaning, water treatment and filtration, onboard carbon capture and storage etc.
| Nominal diameter (DN) | 40 & 50 |

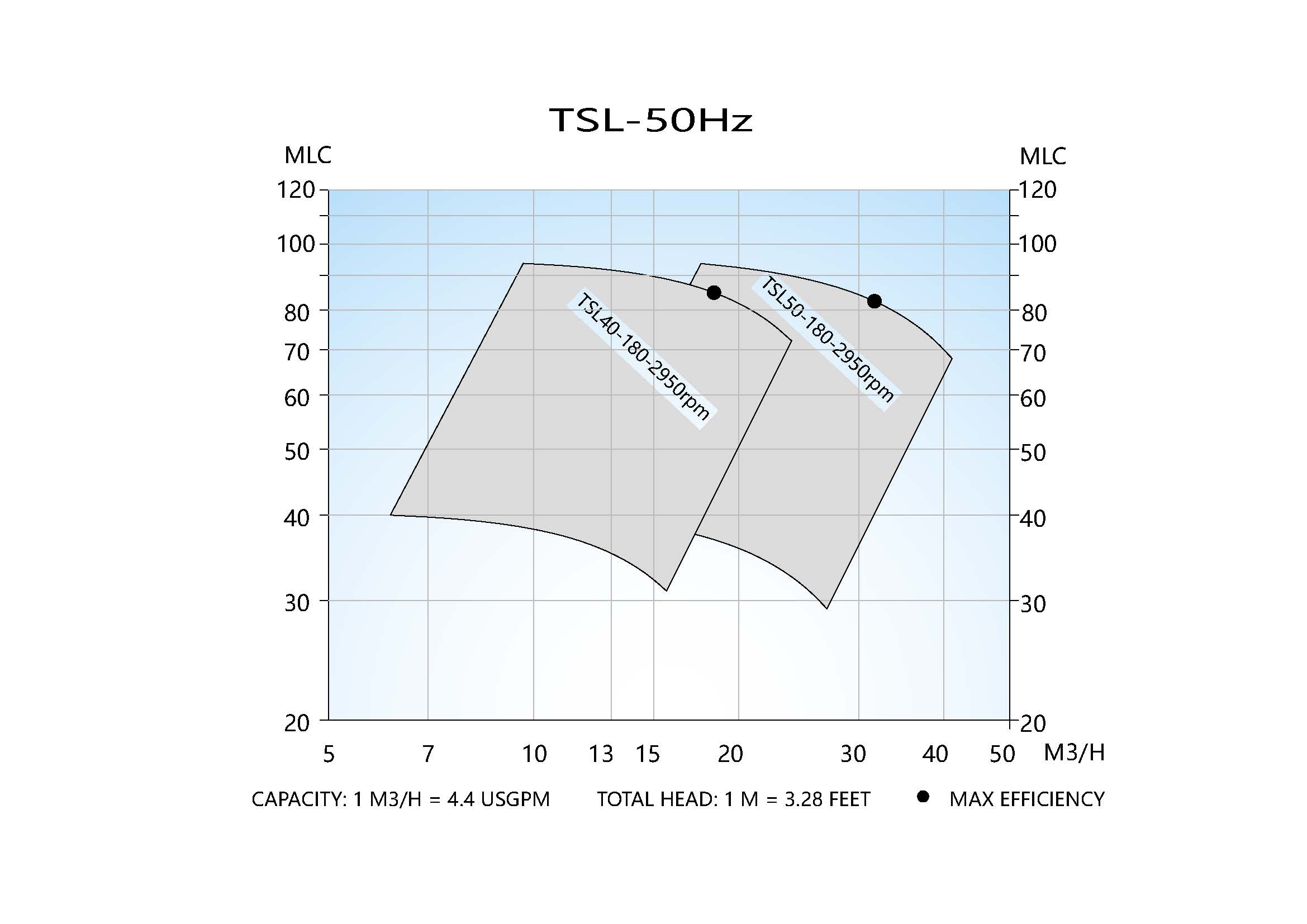

| Flow rate - 50 Hz | Up to 40 m3/h (180 US gpm) |

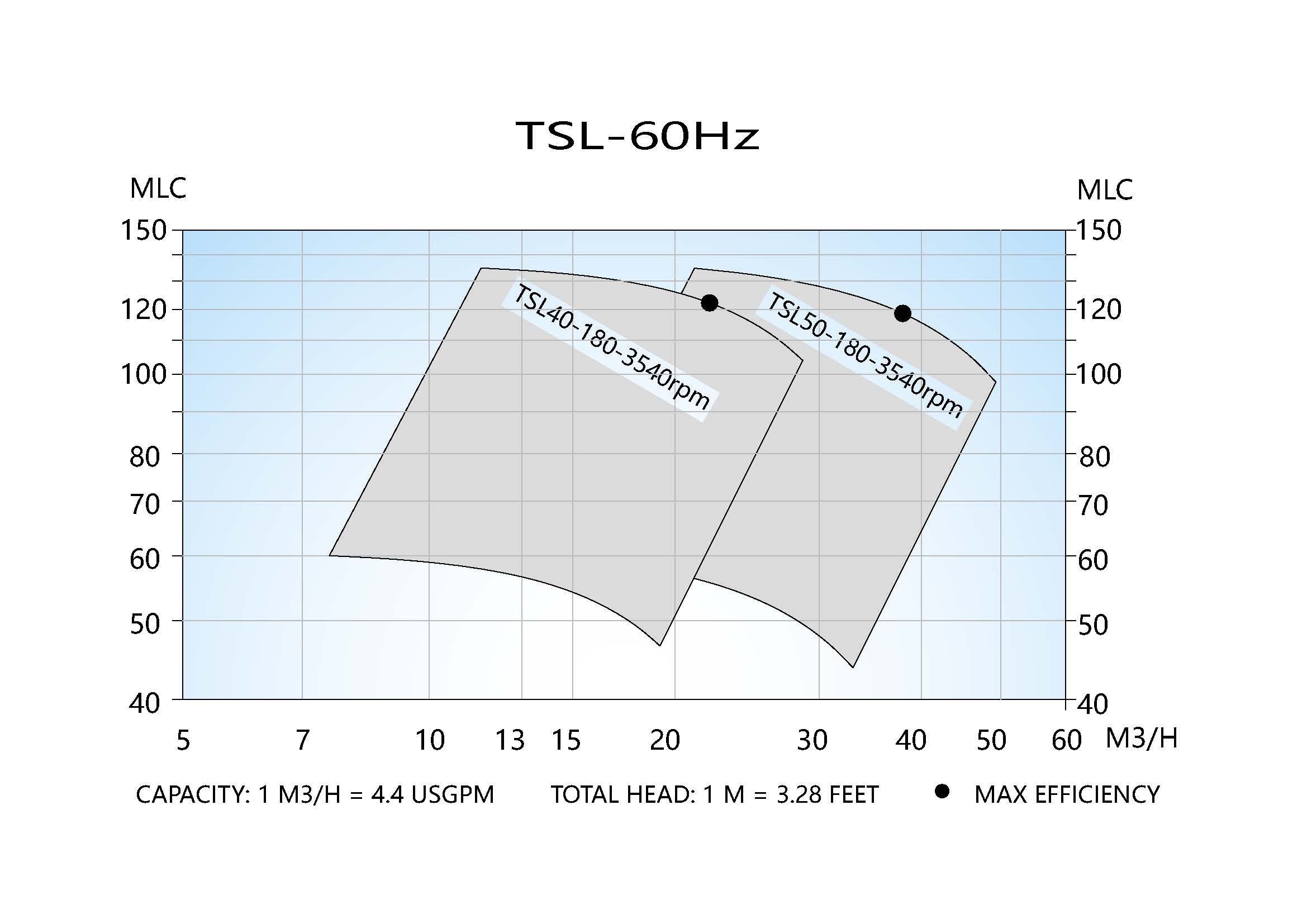

| Flow rate - 60 Hz | Up to 48 m3/h (210 US gpm) |
| Head | Up to 135 m (440 ft) |
| Pressure | Up to 16 bar (230 psi) |
| Temperature | Up to 140°C (284 °F) |
| Motor | Standard and Ex motor |
| VFD | Direct or Bulkhead/Wall-mounted |
TSLH
English
- English
Download Manuals
TSLH Monobloc (T1538UK)
English
- English
DIMENSIONAL SKETCHES
