DES Helicopter Refueling Systems

For fixed and rotary wing aircrafts as well as for ground vehicles and static equipment.

The DESMI refueling systems are intended for use in both the military and commercial sectors. DESMI is the preferred supplier of systems for both fixed and rotary wing aircrafts. Each system is specifically designed for pumping, filtering and dispensing fuel for military and naval use and will at all times deliver dry clean fuel at the end of the nozzle.

Request Quote

Product information

Safe Fuel operation on board your naval ship - in every naval environment.

Maximum operation time
Easy access for maintenance & trouble shooting
Max uptime
Easy handling before first flight of day

The pump and filtration system is available in 3 standard sizes, depending on your request:

150-225 liters
225-480 liters
480-680 liters

No matter which size you choose, we make sure it fits your ship and your operation. We deliver with one or two filter water separators and each system is made in a modular design with bottom plate to save weight and increase strength and prepared for HIFR and for the newest filter barrier technology.

Technical data

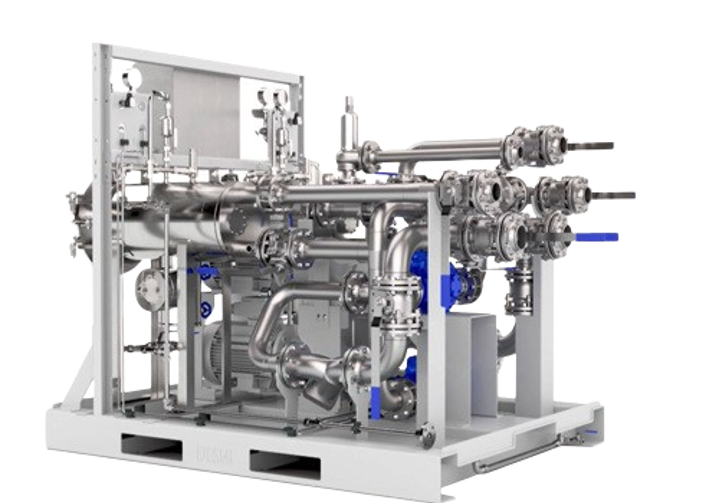

Pump & Filtration Skid

Model	L x W x H	Capacity	HIFR	Weight
DES-150	2006 x 1190 x 1736	150 - 230 I/min	Yes	1085 kg
DES-250	1956 x 1905 x 2092	150 - 230 I/min	Yes	2157 kg
DES-165	2300 x 1905 x 2042	250 - 380 I/min	Yes	1215 kg
DES-265	2300 x 1905 x 2042	250 - 380 I/min	Yes	2455 kg
DES-180	2490 x 1785 x 2050	380 - 680 I/min	Yes	2550 kg
DES-280	2490 x 1785 x 2050	380 - 680 I/min	Yes	2421 kg

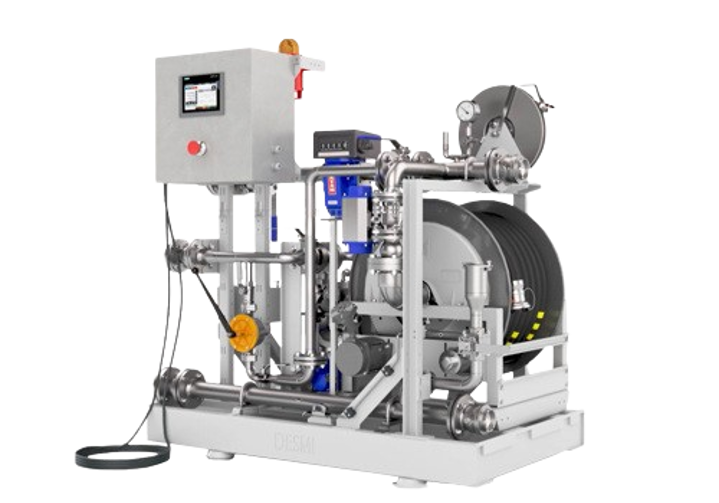

Dispenser skid

Model	L x W x H	Capacity	HIFR	Weight
DES-340	1500 x 1400 x 1788	150 - 230 I/min	Yes	900 kg
DES-350	1600 x 1500 x 1788	250 - 380 I/min	Yes	990 kg
DES-365	1750 x 1700 x 1946	380 - 680 I/min	Yes	1130 kg
