TSL Centrifugal Pump

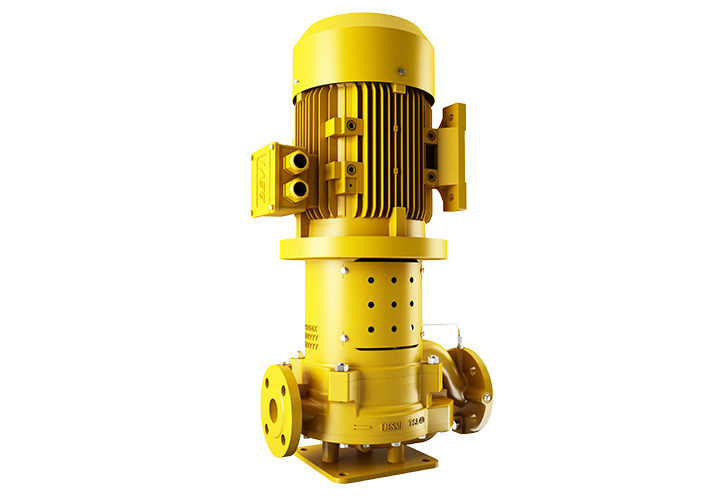

Two-stage vertical centrifugal pump
The pump is a two-stage vertical centrifugal pump equipped with stainless steel shaft,
mechanical shaft seal, and closed impeller.
The TSL pumps are two-stage, single-suction centrifugal pumps with high differential pressure pumps including a flow up to 48 m3/h and pressure up to 135 mLC at 60 Hz. Both vertical and horizontal installations are available. The suction port and discharge port are an inline or angular arrangement.
Two impellers in a tandem array achieve both high pressure and high efficiency. The main wet parts are casted, ensuring various pump materials are attainable. Low pressure seal chamber extends the shaft seal life time. Innovative volute and impeller structure minimize the axial and radial force on shaft to enable steady running. Split casing in three parts allows overhauling of the rotation parts without disturbing pump casing or pipeline. Optimal flow passage to guarantee high efficiency achieved.
Applications
|
|
|
|
|
|
|
|
|
Technical data
| Nominal diameter (DN) | 40 & 50 |

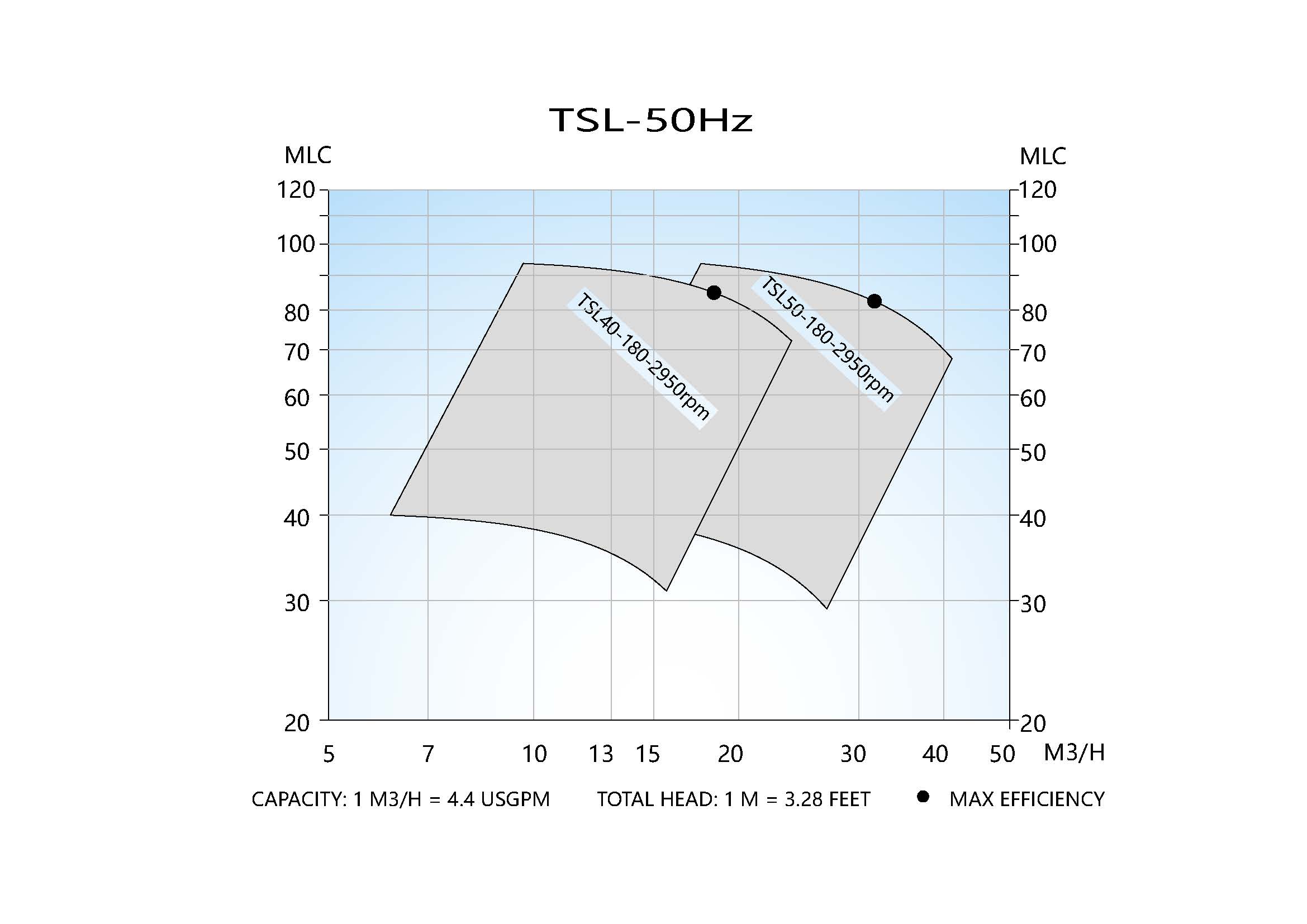

| Flow rate - 50 Hz | Up to 40 m3/h (180 US gpm) |

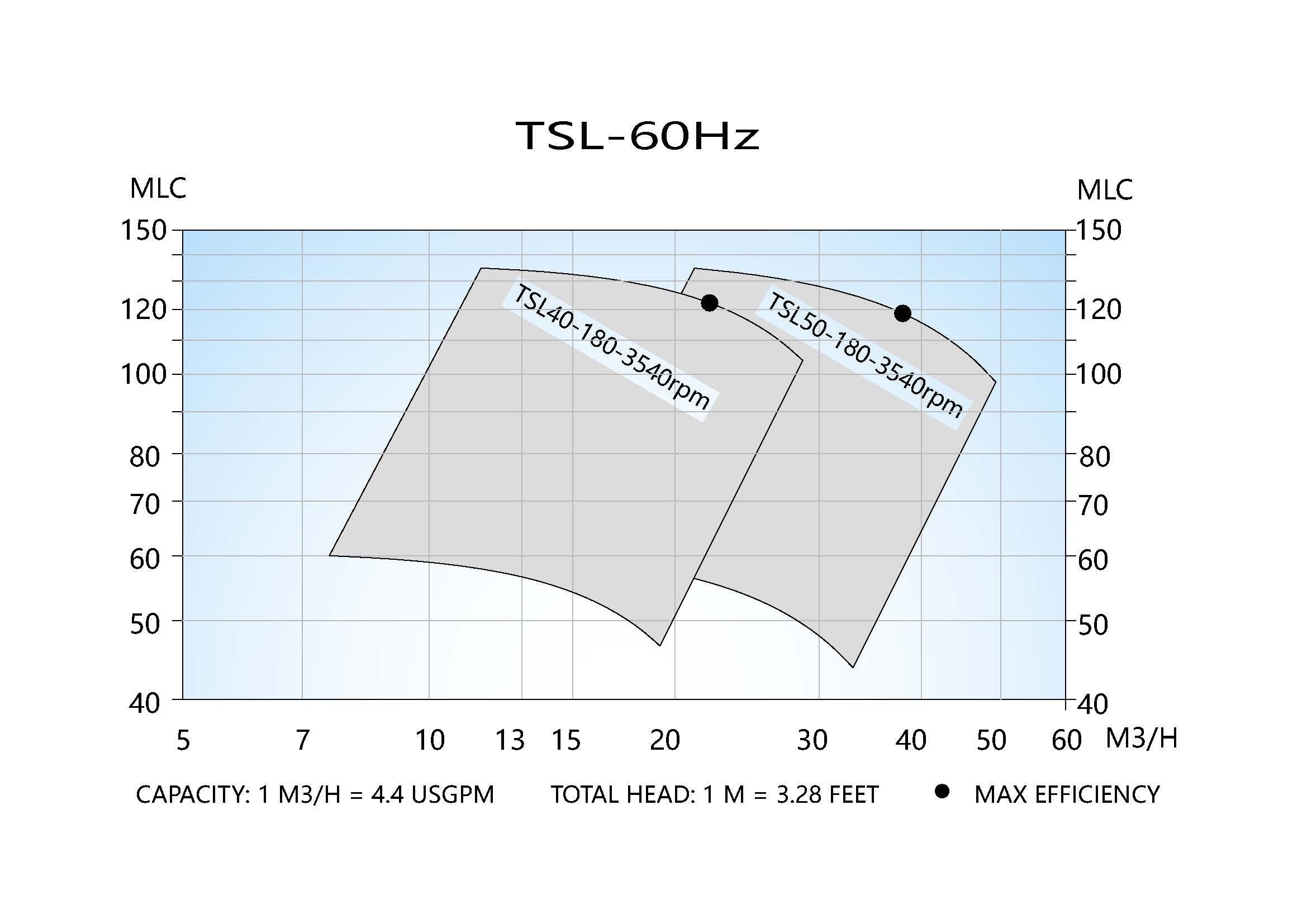

| Flow rate - 60 Hz | Up to 48 m3/h (210 US gpm) |
| Head | Up to 135 m (440 ft) |
| Pressure | Up to 16 bar (230 psi) |
| Temperature | Up to 140°C (284 °F) |
| Motor | Standard and Ex motor |
| VFD | Direct or Bulkhead/Wall-mounted |
