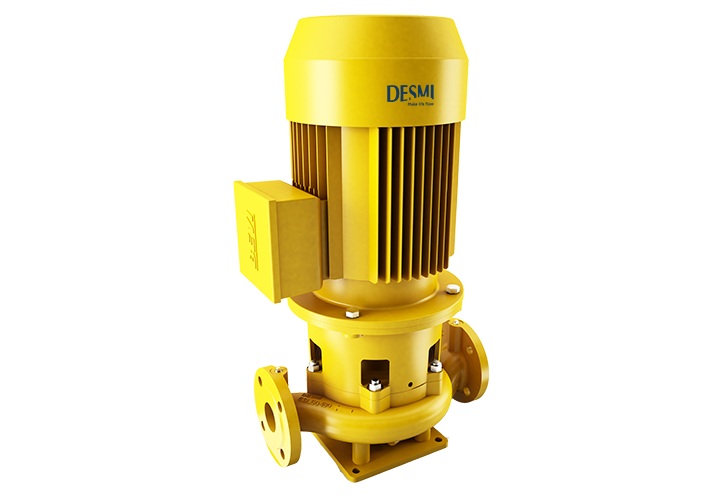

ESL Centrifugal Pump

ESL Centrifugal Pump

High-efficiency In-line centrifugal pumps
Up to 200 m³/h (880 US gpm)



Request Quote



The ESL Centrifugal Pump is designed for high efficiency, low NPSH and is installation and service friendly. The ESL is widely used within different applications and markets.



Nominal diameter (DN) 25 to 100
Flow rate Up to 200 m³/h (880 US gpm)
Head Up to 65 m (210 ft)
Pressure Up to 30 bar (435 psi)
Temperature Up to 150°C (302°F)
Motor Standard and EX motors
VFD Direct or Wall-mounted
ATEX approved Yes



  • Hot water circulation
  • Fresh water circulation
  • Refrigeration
  • HVAC
  • Hydrophore pump
  • Cooling water
  • The pump can be equipped with an air-driven or electrically driven priming device.



DESMI ESL centrifugal pumps meet the requirements for:



  • Low maintenance costs
  • High efficiency
  • Low NPSH
  • High configuration flexibility
  • Compact design
  • Installation and serviceability



Design Features

ESL pumps are single-stage centrifugal pumps equipped with mechanical shaft seal for maximum life and minimum friction loss. ESL pumps are single-stage centrifugal pumps with connecting flanges according to international standards. Further the pumps can be fitted with electric motors with flange dimensions also according to all international standards.



Download Brochures

ESL (Marine)

English
  • English
  • Dutch
  • Chinese

ESL/ESLH (Industry)

English
  • English
  • Danish
  • American

ESL (Utility)

English
  • English
  • French
  • Russia
  • German
  • Polish
  • Dutch
Download Manuals

ESL Monobloc (T1515)

English
  • English
  • Danish
  • Polish
  • Russia
  • Swedish
50 Hz

PDF

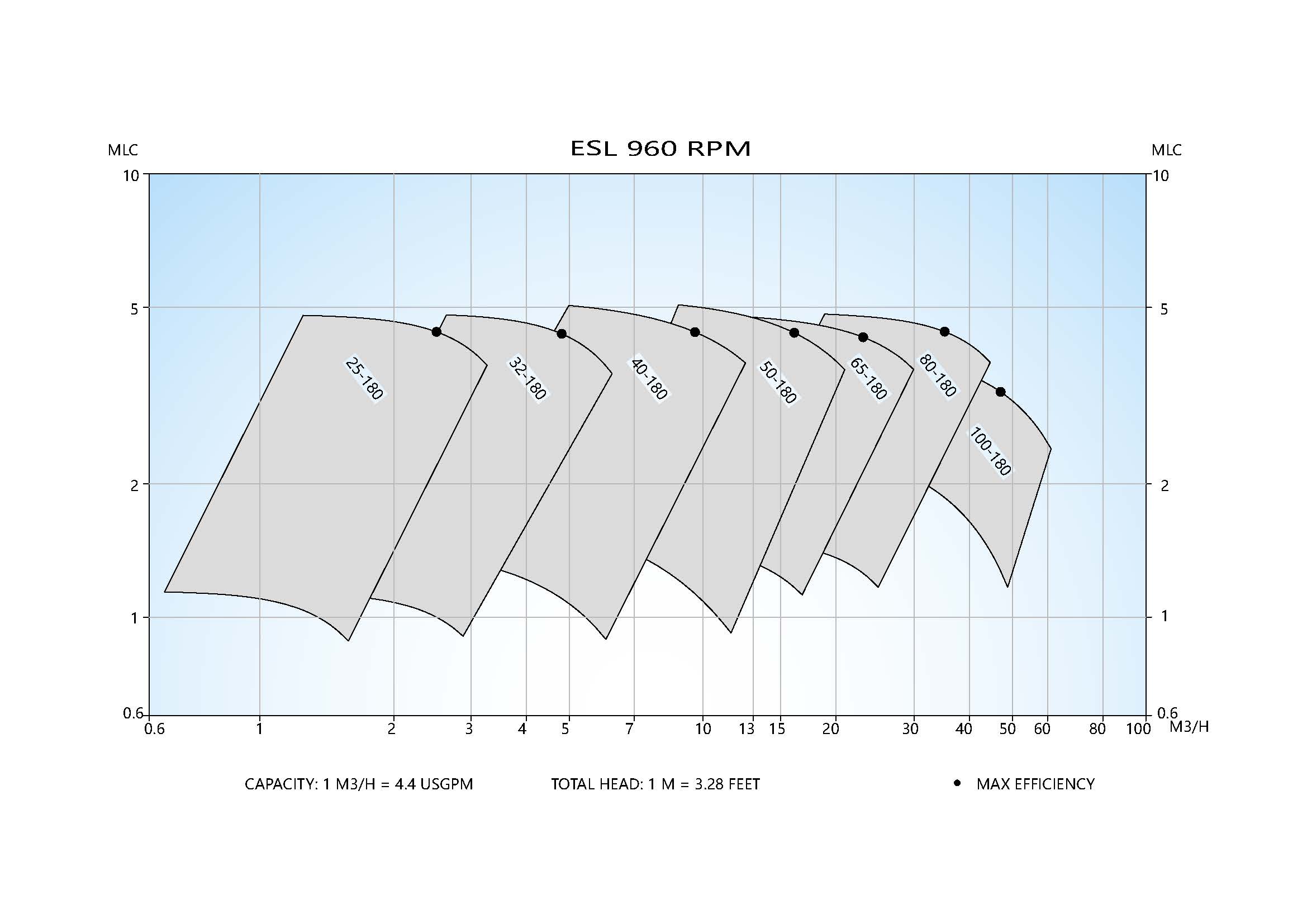

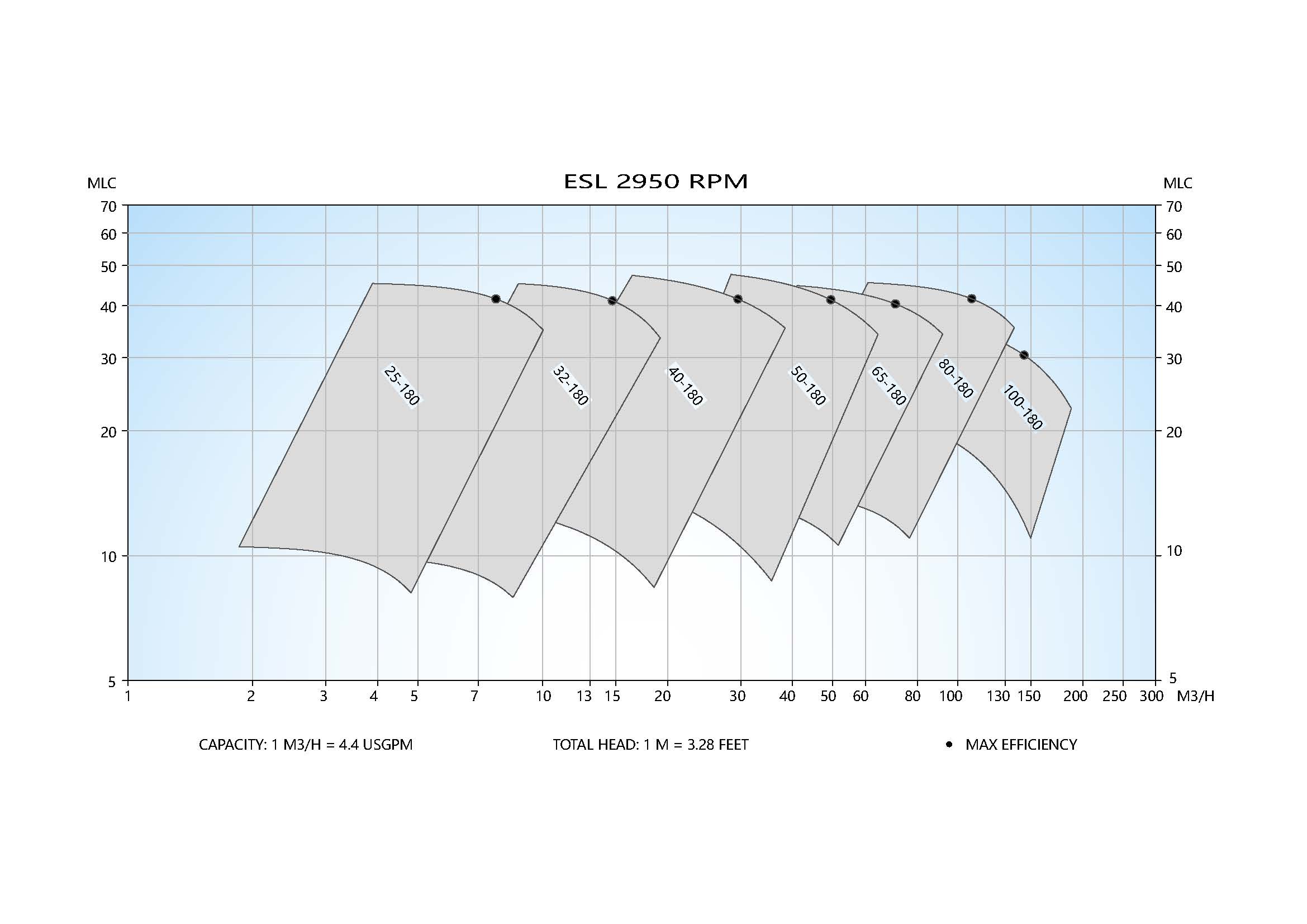

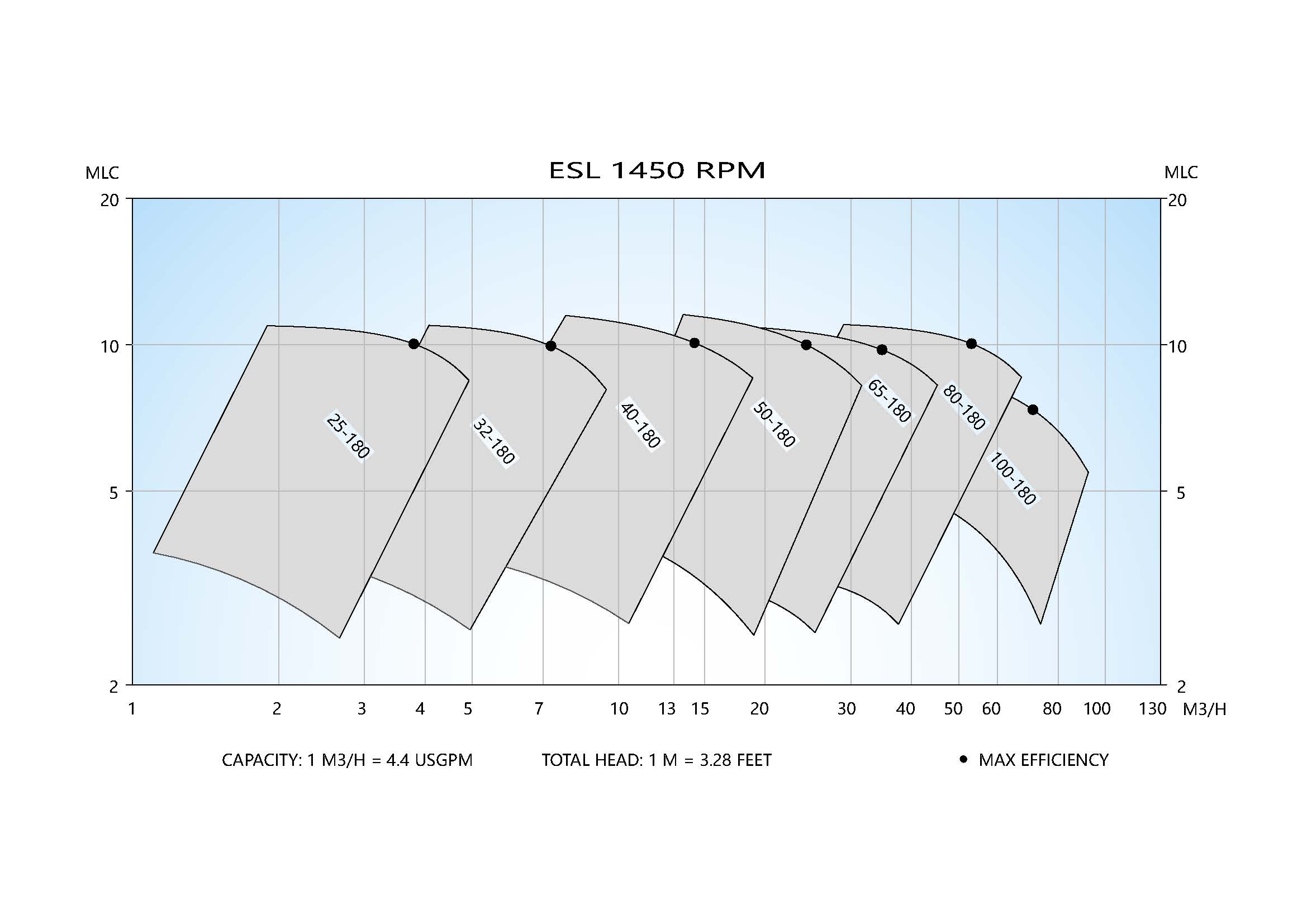

720 RPM  960 RPM  1450 RPM  2950 RPM




JPG



720 RPM  960 RPM  1450 RPM  2950 RPM

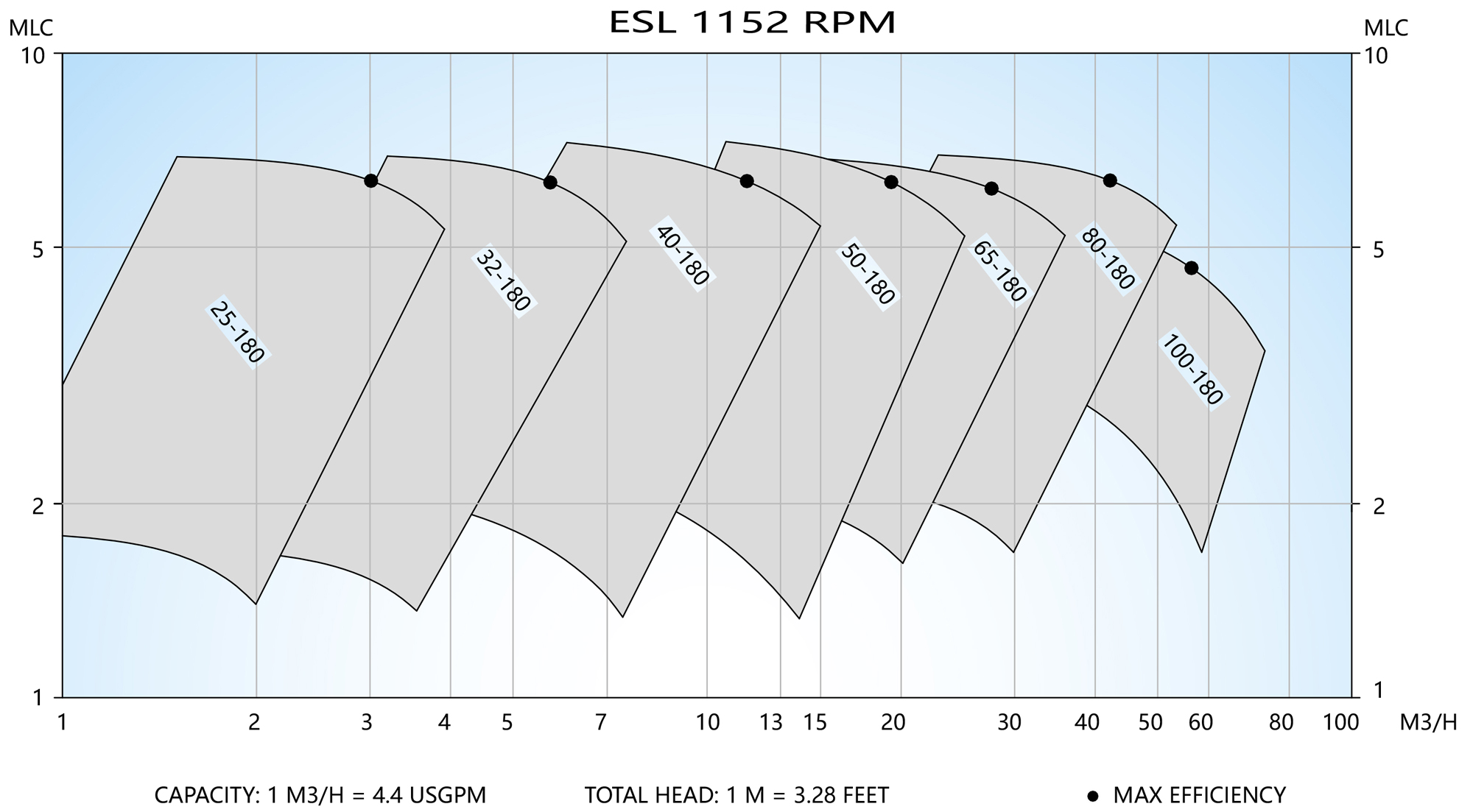

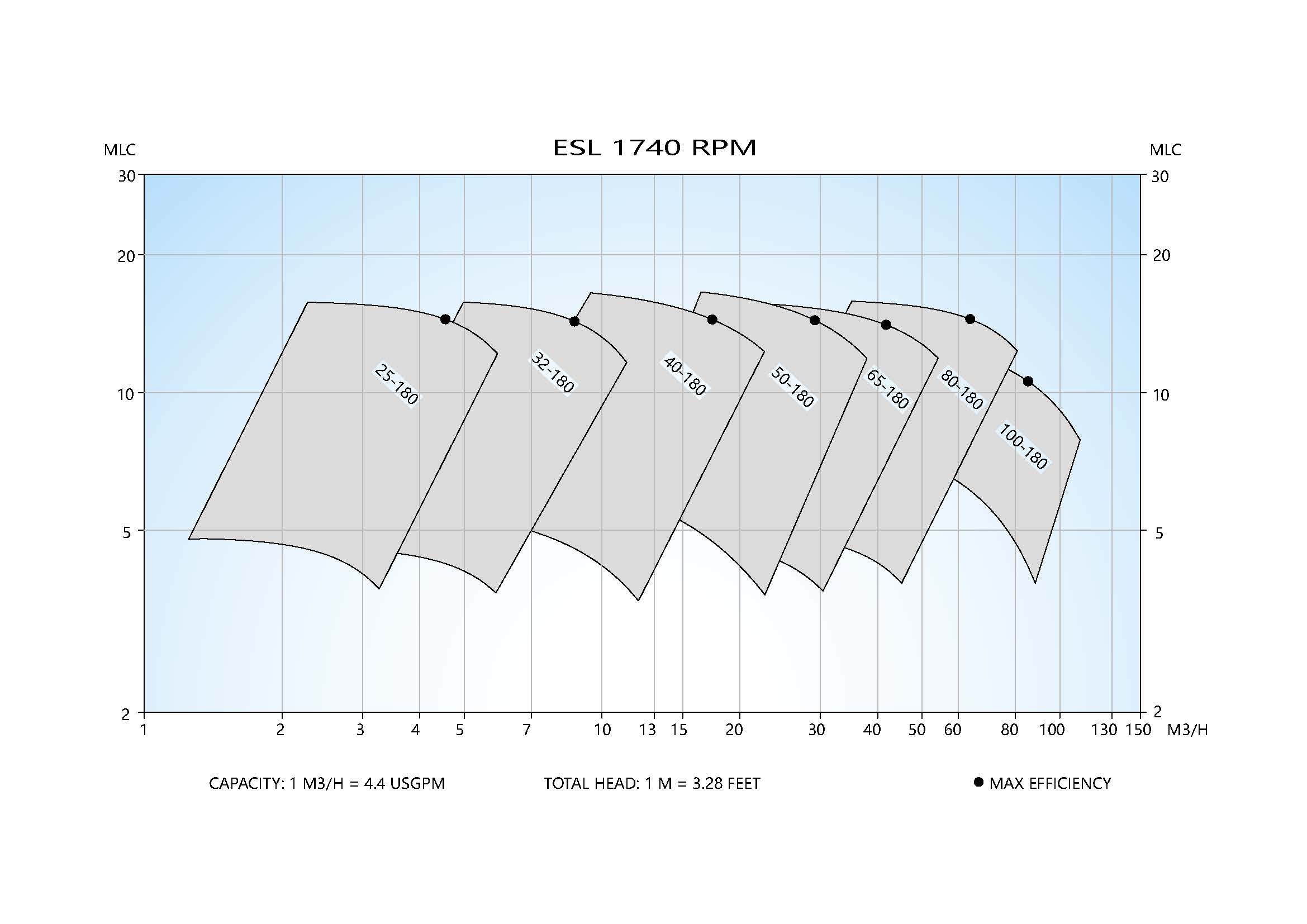

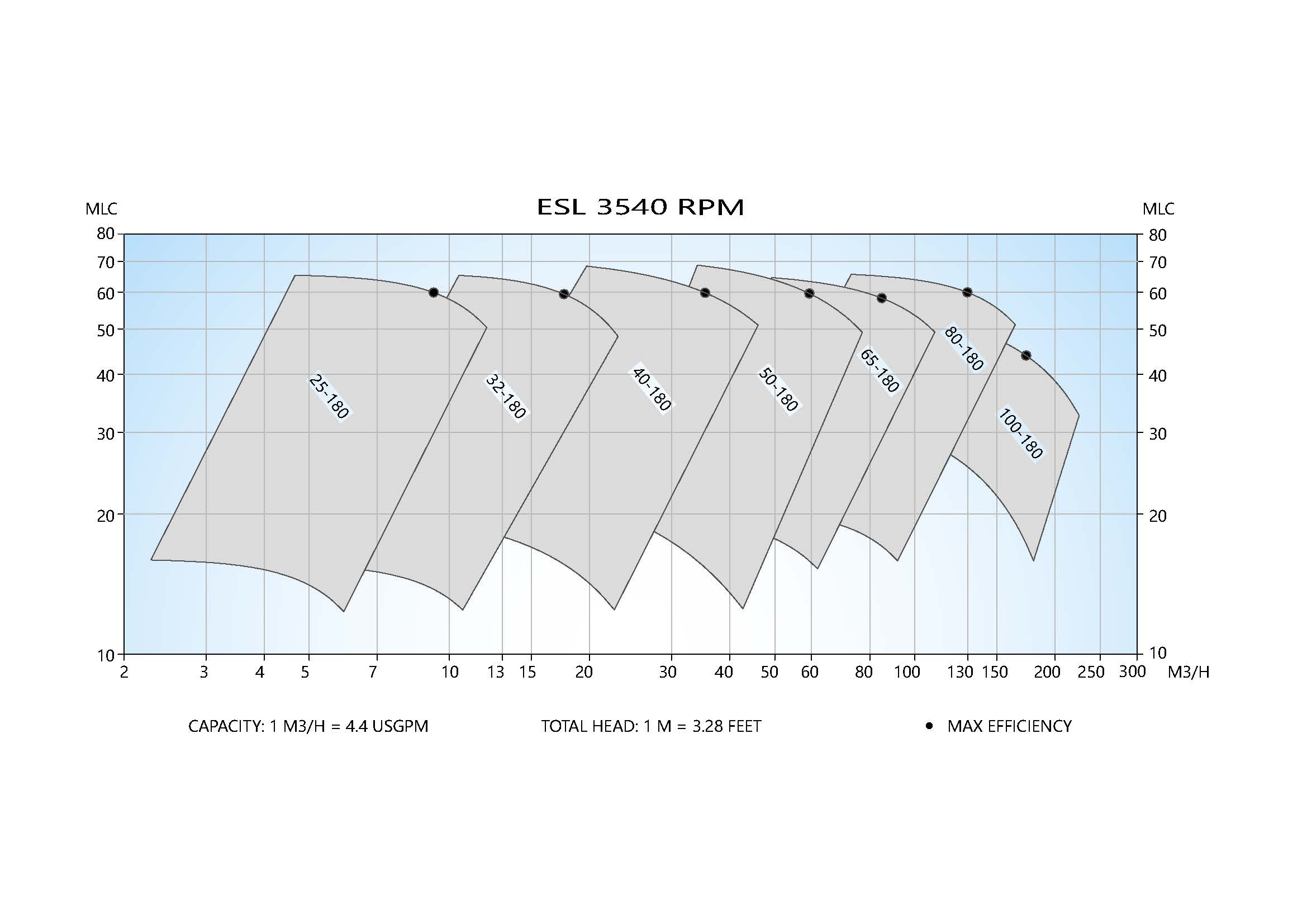

60 Hz

DIMENSIONAL SKETCHES



ESL Monobloc - Dimensional Sketch



ASSEMBLY DRAWINGS



ESL Monobloc - Assembly Drawings



3D DRAWINGS



ESL 25-180



ESL 40-180



ESL 50-180







ESL 65-180



ESL 80-180

DESMI AFTER SALES

SPARE PARTS

Selection programs

Find curves for existing pumps, get GA drawings for initial designs and compare efficiency, motor power, NPSH and other data to find the right pump.
