DES-1 Emergency Diesel Driven Fire Pump
Built for naval emergencies – engineered for survival
The DES-1 is a compact, diesel-driven fire pump designed specifically for naval defense applications. Built to deliver dependable firefighting performance in the harshest maritime environments, the DES-1 operates fully independently from ship systems and is built to keep running – even under extreme conditions.
| Version: | DES-1 MK II |
| Flow Rate: | Up to 160 m3/h (700 usg pm) |
| Pressure: | Up to 9 bar (130 psi) |
| Runtime per tank: | 3 hours (full load) |
| Starter: | MIL-SPEC battery (NSN) + optional spring starter |
| Cooling: | Closed loop via main pump bleed-off |
| Shock Resistance: | According to: MAP 01-471 shock grade AB and C. Tested and approved for naval applications |
- Standby Ready - Maintains warm engine and charged battery from ship power, minimizing wear during testing.
- Shock-Approved for Naval Use – Certified according to MAP 01-471 (shock grade AB and C) for uninterrupted function during combat.
- Dual Start System (optional) – MIL-SPEC electric starter with optional spring starter as manual backup.
- Self-Priming Pump – Requires initial fill only during commissioning or after servicing.
- Efficient Cooling – Closed-loop system cooled via bleed-off from the main pump. Runs up to 6 minutes without active cooling.
- Cold Start Support – Equipped with air intake heater for reliable startup in low temperatures.
- Remote Operation (optional) – Can be controlled remotely from a damage control station with pressure switch monitoring.
- Emergency Override Capability – Hardwired override bypasses shutdown in critical fire situations.
- Compact Design – Fits through standard naval access doors for easy handling and service.

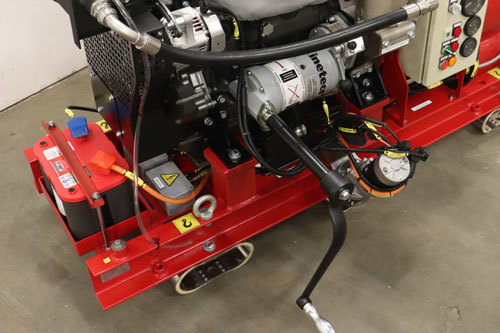

Manual operated spring starter for emergency start (optional)

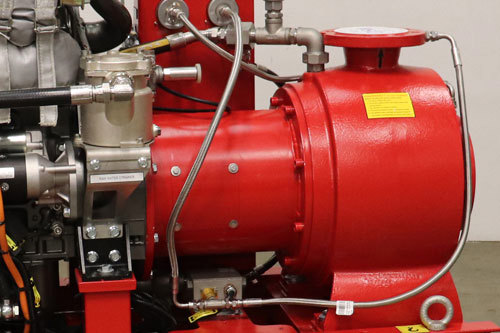

No pump and motor alignment required due to special motor bracket
