BWMS Service
We are here to support you with: Installation, commissioning, service, and spare parts.
Our dedicated AfterSales & Service team is ready to assist you throughout the entire equipment lifecycle.
Our services include:
Our BWMS Services
We know how critical it is to get every task done correctly and on schedule. That is why we support you at every stage with tailored engineering and installation services that keep your project moving seamlessly. From prefabrication and commissioning to comprehensive service agreements, we ensure your BWMS operates flawlessly.
Phase 1: Scanning, processing and producing a 3D as built environment
- Work preparation
- Measuring on board (3D laser scanning, 1 day)
- Inspection of possible locations for installation of equipment
- Check tie-in location into existing piping
- Check wire routings, cable penetrations, available space for additional breakers in main switchboard
- Check for structural modifications in case required
- Processing of laser scans after shipboard visit
Phase 2: Engineering
- Concept model of proposed system, modelled in the available space. Delivered as screenshots in a .pdf file
- First proposal of possible lay-out and installation
- Update ballast water diagram to new situation
Phase 3: After approval of location of the treatment system by Client
- Preparation of documents for Class approval
- Material specification of piping and valves
- Updated ballast water diagram with treatment system included
- Updated Load Balance
- Updated Single Line diagram
- Additional Class requirements will be discussed on case by case basis
- Routing of piping
- Isometric drawings for fabrication of piping including material specification
- Production drawings for all necessary foundations
- Overview drawings for installation
- Part lists of all materials needed for the installation but outside the scope of supply of the CompactClean system, including cable lists, valves, bolts, nuts, gaskets, pipe supports
- Installation guide with instructions

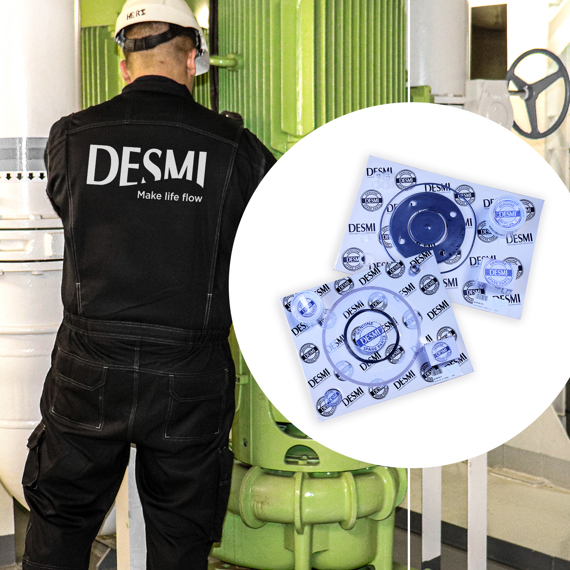

Critical Spare Parts
We are committed to ensuring maximum uptime and optimized performance. Disruptions in BWMS operations can be critical - therefore, having the right spare parts available onboard is important.
With DESMI Spare Parts Kits, you significantly reduce the risk of downtime and keep your system fully operational, even in the event of an unexpected breakdown.
In addition to spare parts kits, we also recommend keeping lamp drivers in stock - a crucial component for the system’s operation.
Avoid the unnecessary risk of a breakdown. DESMI’s critical spare parts help you stay prepared for any situation.
Recommended Kit for all BWMS Systems
DESMI recommends a Spare Parts Kit and lamp driver for efficient and reliable operation.
*Depending on the system size, additional UV lamps, quartz tubes, and lamp drivers should be considered.
 |
2 x UV lamps, including UV unit seal kits |
 |
1 x Quartz tube
|
 |
UV-I sensor & pressure transmitter |
||
 |
UV measurement window |
 |
2 x Citric acid, 5 kg buckets |
 |
2 x Main fuses |
||
To request these critical items for your BWMS, or if further information is needed, please reach out to our spare parts department or contact your local DESMI sales representative.
