CompactClean EX Certification
Safety on board any ship - including oil, gas and chemical tankers The CompactClean BWMS is available in an ATEX and IECEx certified version with flowrates from 250 m³/hr, making installation in hazardous zones on board oil or/and chemical tankers possible.
The EX certification notation is:
Ex II 2G Ex IIB T4 Gb
and is based on the following components:
|
|
|
|
|
|
|
|
|
|

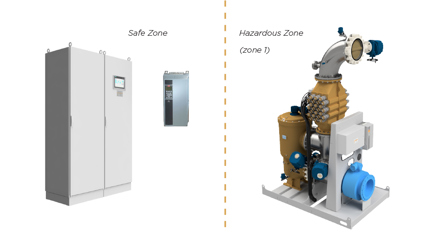

“The system itself is approved for installation in the Hazardous Zone (zone 1) whereas the Main Electrical Panel and Frequency converter for the backflush pump must be installed in the Safe Zone. The distance between the system and Main Electrical Panel can be up to 100 m / 328 ft.”
Why CompactClean?
-
IMO & USCG Approved
-
Chemical free treatment
-
Down to UV-Transmission of just 35% in IMO waters and 40% in USCG territory
-
No salinity or temperature limitations
-
Fully automated operation
-
Automatic flow control and lamp dimming
-
Graphic HMI touchscreen interface
-
Automatic generation of PDF reports to authorities
-
Low holding time
-
No water cooling or compressed air system required
-
Easy maintenance
-
Multipurpose Backflush/Recirculation/Stripping pump included
-
UV unit made of Nickel-Alu-Bronze material with proven sea-water corrosion resistance
-
Worldwide service network
-
Very low footprint
