The DESMI SA self-priming centrifugal pump
Up to 650 m3/h (2900 US gpm)



Request Quote



The diffuser principle in the self-priming DESMI SA centrifugal pump means that the priming capacity is not dependent on valves or other mechanical elements since it is the liquid flow which carries the air.



Nominal diameter (DN) 20 to 200
Flow rate Up to 650 m³/h (2900 US gpm)
Head Up to 110 m (360 ft)
Temperature Up to 120°C (248°F)
Motor Standard and EX motors
VFD Direct or Bulkhead/Wall-mounted

Within the marine industry the pumps are suitable as:

  • Bilge pumps
  • Ballast pumps
  • Fire pumps
  • Cooling water pumps
  • Wash-deck pumps
  • Fuel pumps
  • Wellpoint pumps
  • Irrigation pumps
  • Circulation pumps

Within industrial and utility applications the pumps are suitable for:

  •  Draining building excavations
  • Emptying ponds, drains, and swimming pools
  • Water extraction for irrigation and watering
  • General service pumps
  • Fuel handling
  • Condensate extraction pumps

Advantages



Open impeller design

  • Semi-open, non clogging high efficiency impeller allowing the pump to operate on dirty water.



Replaceable wear plate

  • To keep the pump at max. capacity even after working with abrasive fluids for a long time, the tolerance between impeller and wear plate may be adjusted by way of shims behind the replaceable wear plate.



Mechanical shaft seal

  • A reliable, spring-loaded, mechanical shaft seal ensures rapid suction, and shaft wear and stuffing box tightening are avoided.



Check valve mounted at a high level

  • The pump check valve is mounted well above the impeller inlet. Consequently, the pump will not - in case of a check valve leakage - lose the priming water which would result in a loss of priming ability.



Heavy bearing design

  • Heavy shaft and bearing design provide long life even in case of belt drive.
Download Brochures

SA

English
  • English
  • American
  • Dutch

SA (for industrial applications)

English
  • English
  • Danish
  • French
  • American
Download Manuals

SA (T1345)

English
  • English
  • Danish
  • Russia
  • German
  • Polish
  • French

SA25, SA35, SA50 - Monobloc Design (T1517)

English
  • English
  • Russia
50 Hz

PDF

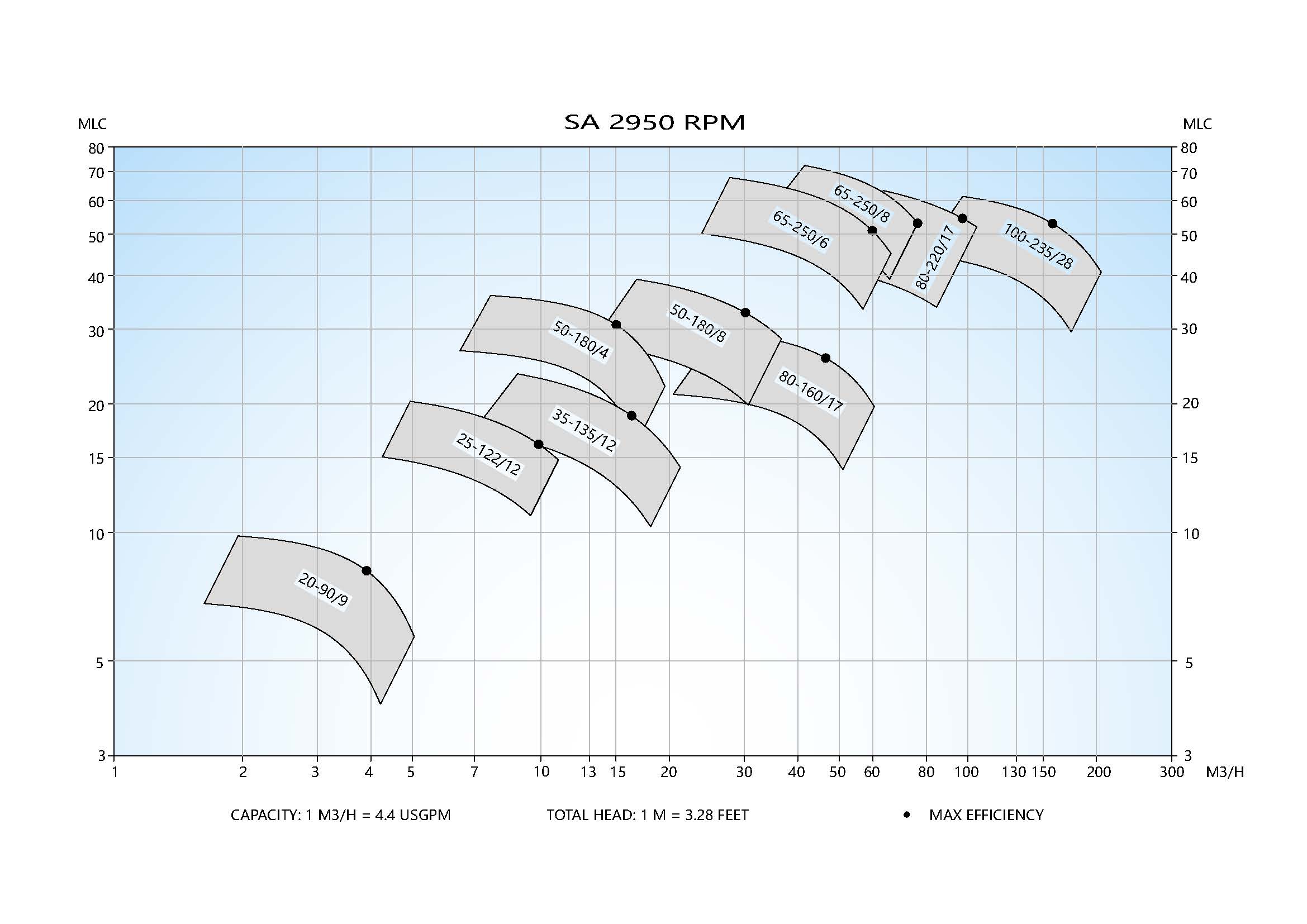

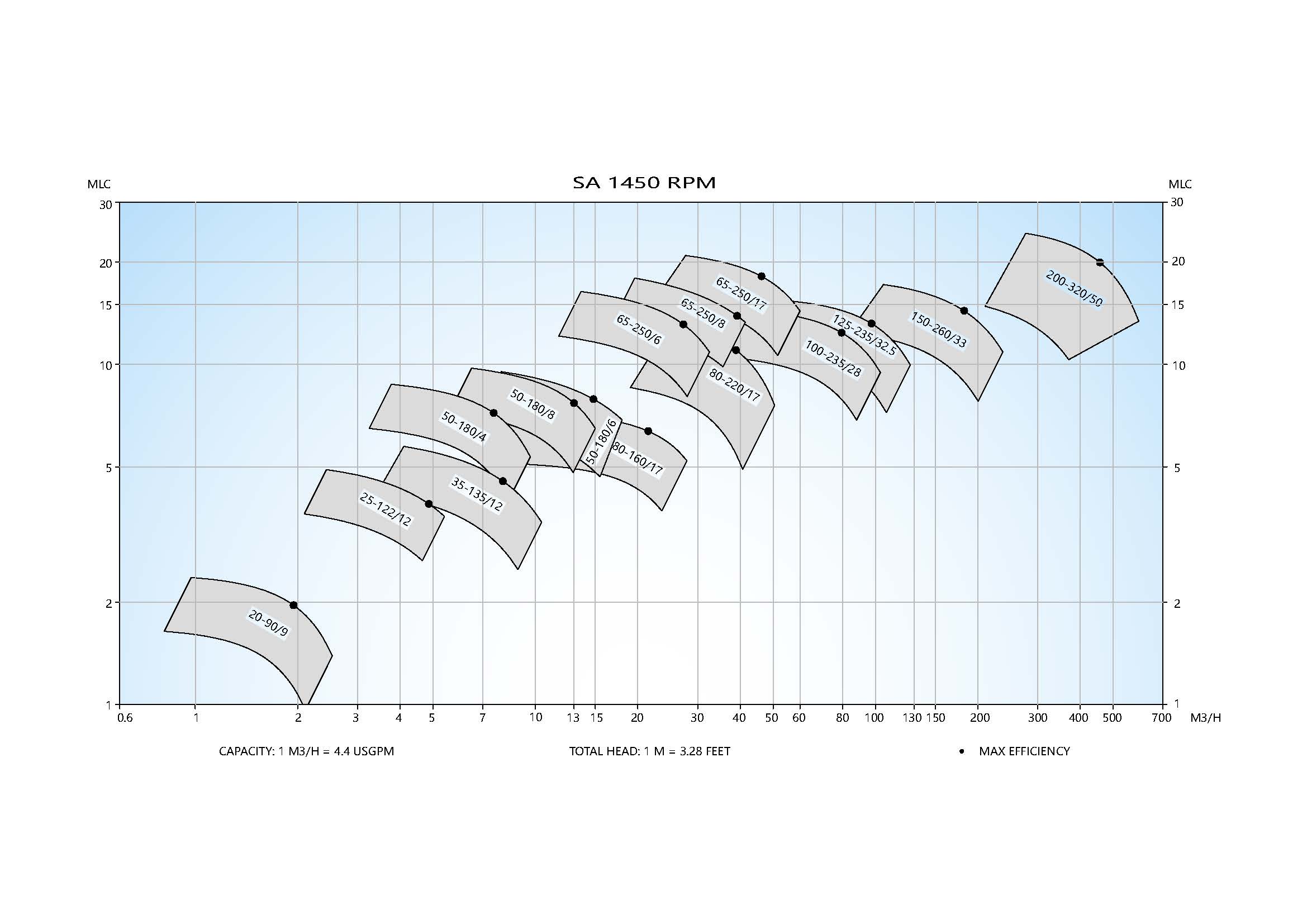

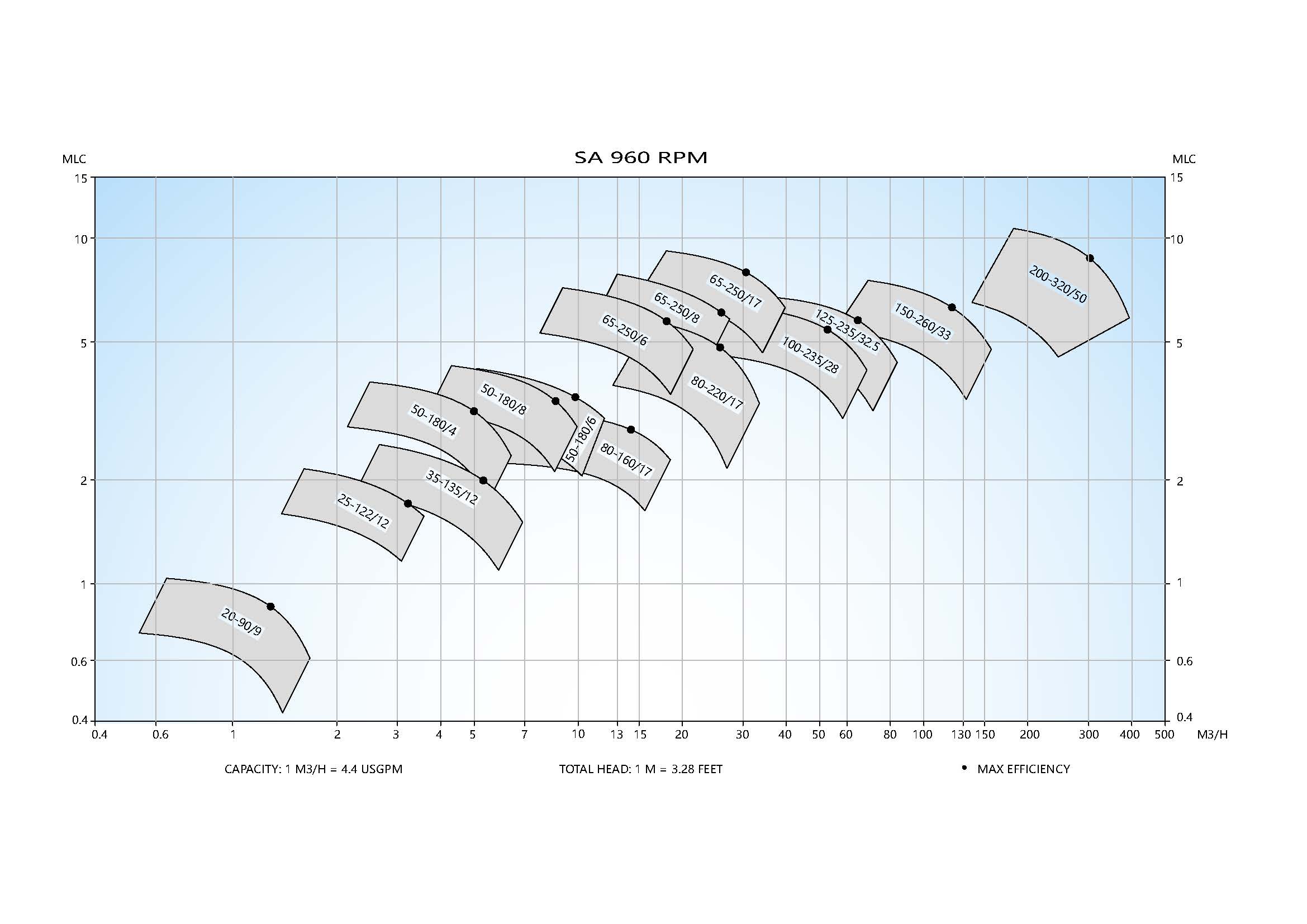

720 RPM  960 RPM  1450 RPM  2950 RPM




JPG



720 RPM  960 RPM  1450 RPM  2950 RPM

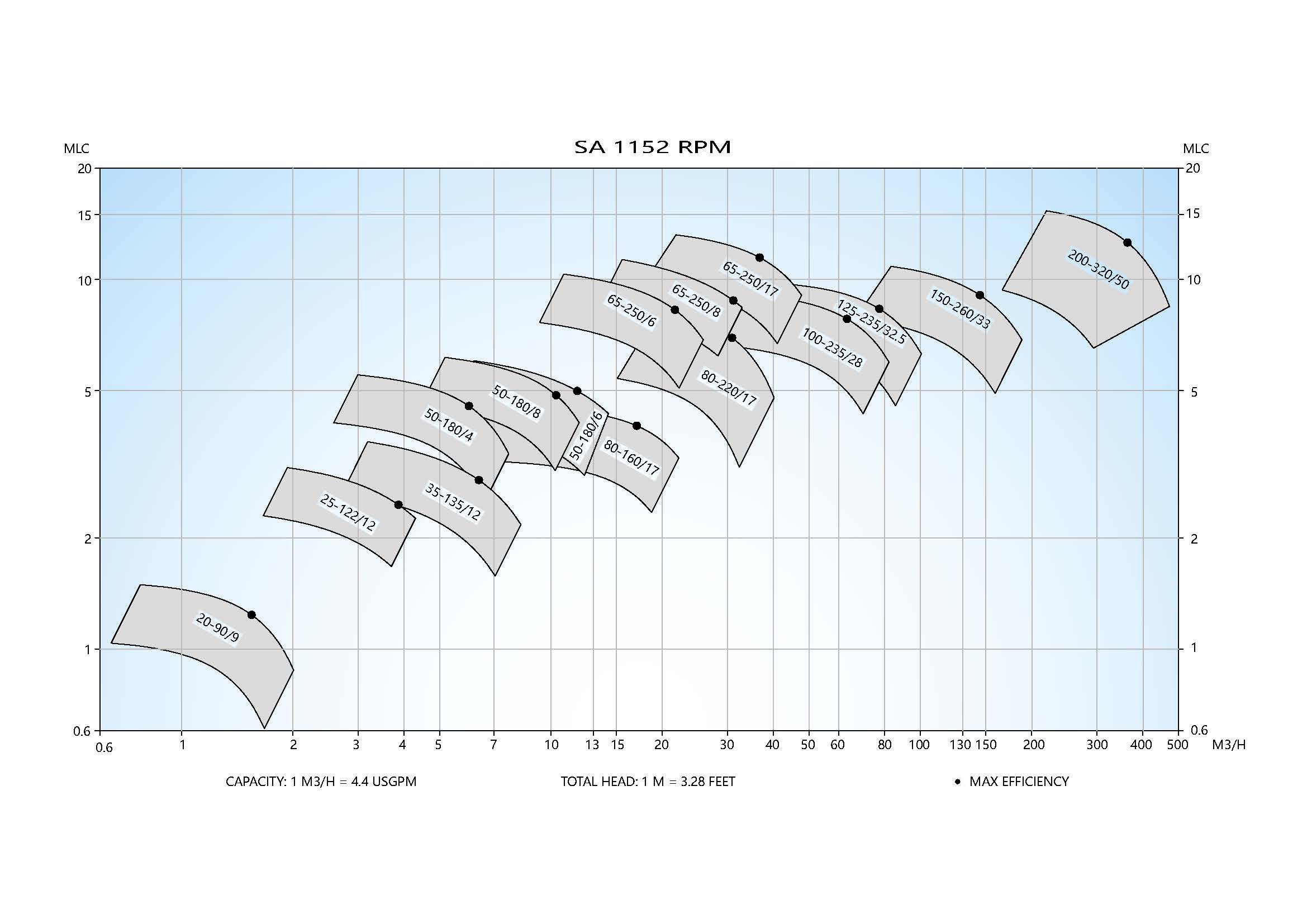

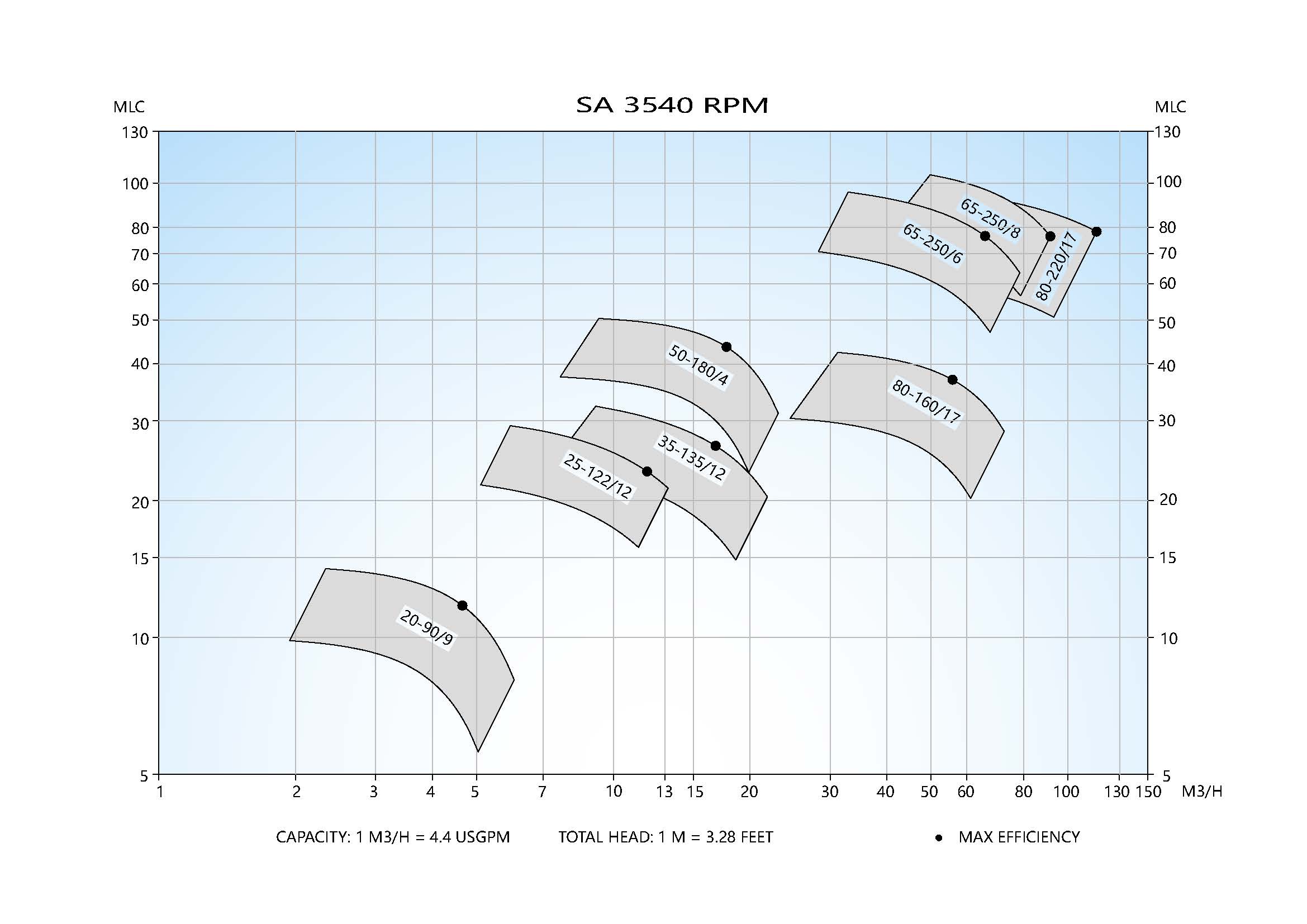

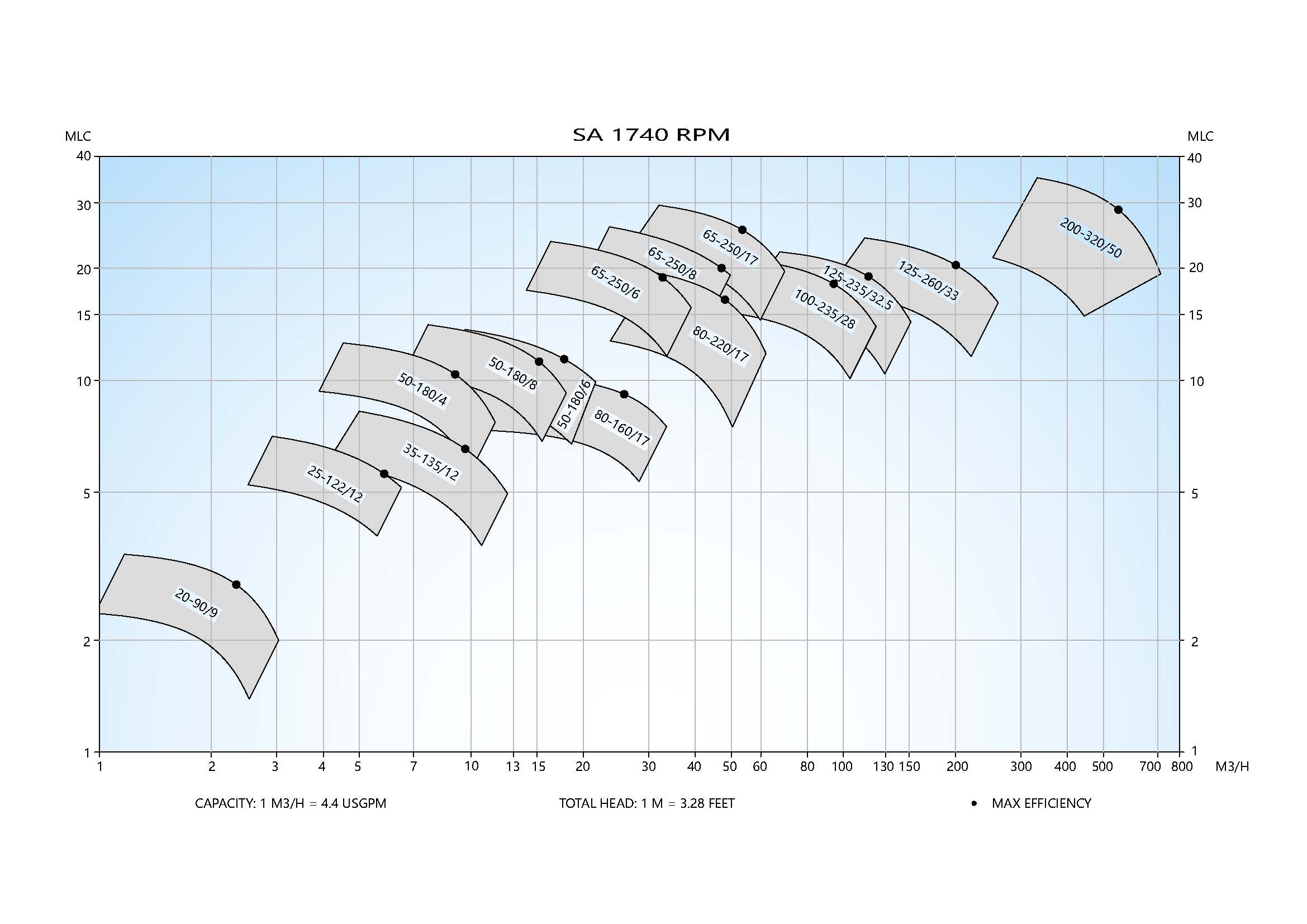

60 Hz

3D DRAWINGS



SA 25 122



SA 35 135 12



SA 50 180 4







SA 65 250 6 8 17



SA 80 160 A&D
