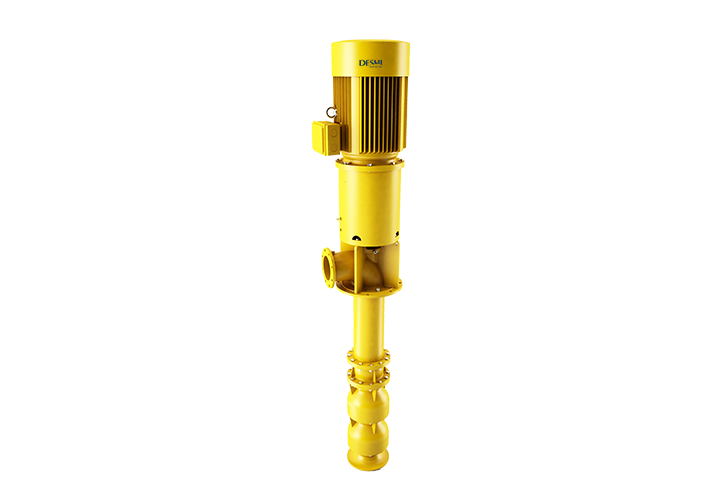

DESLUBE Lubrication Oil Pump
Submerged lubrication oil pump
The DESLUBE series is a submerged deep well pump designed for Main Engine Lubrication oil supply for especially large two-stroke engines. The design is based on our long time experience of manufacturing deep-well pumps as well as the design features from our in-line centrifugal series.
The pump is placed in the tank sump supported by dome flange and requires no further suspension. The sturdy construction ensures a reliable operation with low noice and vibrations level.
- Low NPSH
- Low noice or vibrations
- Low maintenance costs
- High reliability
- High flexibility
DESLUBE combine the advantage of good suction ability with the nature of the centrifugal pump to adopt the system pressure fluctuations. If the lube oil pressure is dropping, a DESLUBE pump will increase the flow to reduce the risk of severe damage and eventually break down on the main engine.
|Nominal diameter (DN)||150 to 300|
|Flow rate - 50 Hz||Up to 880 m³/h (3900 US gpm)|
|Flow rate - 60 Hz||Up to 1050 m³/h (4600 US gpm)|
|Head||Up to 125 m (410 ft)|
|Pressure||Up to 20 bar (290 psi)|
|Temperature||Up to 80°C (176°F)|
|Motor||Standard and EX motors|
|VFD||Direct or Bulkhead/Wall-mounted|
