NSLH-V

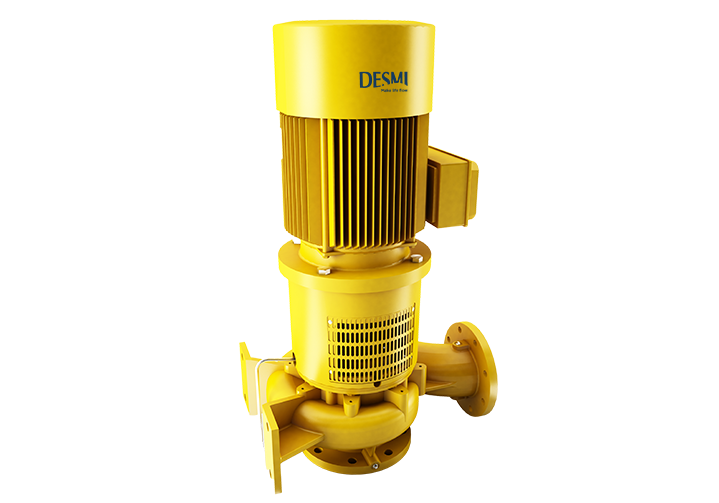

DESMI NSLH/V End Suction Centrifugal Monobloc Pump


The design of the NSLH/V pumps is for medium/high flow capacities up to 1500 m³/h & medium head up to 150mLC. The pump may be configured as vertical or horizontally. Both versions must be radially split, single stage centrifugal pump with connecting flanges according to international standards. The design of the pump needs to include mounting with electric motors having different international flange dimensions.


Material construction of the pump casings needs to be ductile cast iron GGG40 EN1561-GJL-400/DIN1693 for plain water, which shall be able to manage a working pressure of 16 bar (tested 1,5 x working pressure).

The pump casing shall be equipped with a NiAlBz EN1982 CC333G/DIN17656 replaceable sealing ring. Material of the shaft shall always be of high quality duplex stainless steel AISI329/1.4460.Contruction of the pump needs to be with no bearing in pumps in order to reduce service costs.


The pump needs to be fitted with dynamically balanced impellers acc. to ISO1940/1-1986 (E) G6.3 that incorporates advanced double-curved blades to ensure low NPSH-values and high efficiency resulting in lower energy consumption and therefore lower running costs.
The construction material of the impeller shall be NiAlBz EN1982 CC333G/DIN17656 (as standard) or duplex stainless steel AISI329/1.4460 for Scrubber applications.

The seal type shall be a single acting, mechanical shaft seal, which seals off the liquid cavity at the motor shaft. The liquid temperature that the pump/seal can manage should at least be 250°F/121°C. For liquid temperature above 250°F/121°C, the seal needs to be balanced.


DESMI have manufactured pumps for District Energy in bigger scale since 1950, has ISO 9000 certification – and own branches, distributing partners and service providers in most markets around the world. DESMI have key focus on energy efficient solutions (often up to 85%) with easy maintenance, low downtime and a long life cycle. DESMI’s location in Denmark, the country with most experience and latest technology within District Energy is a huge advantage for our company – as we are constantly dealing with leading consultants and utility /energy companies, helping us to raise our game even further.
