Testbed - DESMI HQ

The DESMI headquarters in Nørresundby, Denmark are equipped testbed facilities for both Centrifugal and ROTAN pumps.

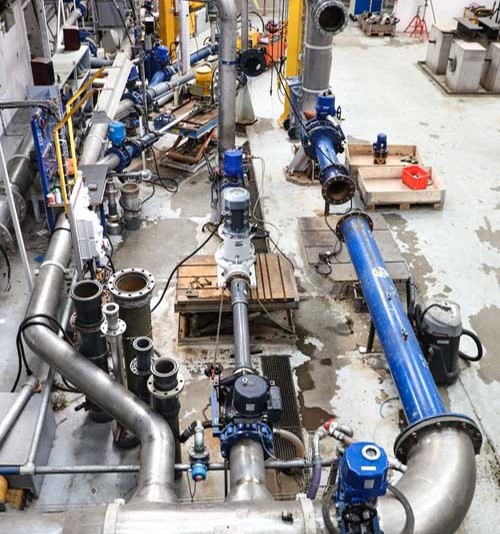

CF Testbed - DESMI HQ 2

CENTRIFUGAL PUMP TEST BENCH



The Centrifugal Pump testbed was established in 1977 and rebuild in 2017. The tests are performed in a "closed loop" system with water from an isolated water reservoir containing 150 thousand litres of water. The system is capable of performing capacity tests as well as tests of noise- and vibration levels on Centrifugal Pumps of all types and sizes. Additionally, flow-tests are performed with ranges from 0-2300 m3/h.



Centrifugal pumps with electric motors are tested from 0-315kW while the facility is also equipped with an area dedicated to testing pumps with diesel-driven motors.





mORE INFO ON desmi CENTRIFUGAL PUMPS

DESMI Centrifugal Pump Test Bench in DPTA (Nørresundby, Denmark)
Flow range: 3 ~ 2300 m3/h (4 sizes of flow meters; accuracy class of the flowmeters:+/-0.3% (smaller (<3) and larger (>2300) flows up to 3000 m3/h can be meaured if less accuracy is acceptable)
Differential pressure: 3 ~ 200 mLC (0.3 ~15.2 bar) (2 sizes of pressure transmitters;accuracy class of the  pressure transmitters:+/-0.5%). Lower values can, however, be measured provided the current flow can be pumped through in the test stand with such low pressure differences - and if normal measurement accuracy is not required.
Max. electric power: 315 kW (4 sizes of current transformers are used for measuring down to the minimum power with the required accuracy). Test with ~500 kW 400 Volt supply to customer's VFD can be arranged - but then the power must be measured manually (with hand instrument or via approx. reading on the VFD's display). For higher power supply to customer VFD a diesel driven generator can be rented.
Min. electric power 1 kW (lower powers can, however, be measured if normal measuring accuracy is not required)
NPSHr NPSHr values below approx. 2 mLC is typically not possible to prove precisely enough due to leaks in the piping system and the method used with throttling on the suction side of the pump. NPSHr testing is only performed on customer's request or by arrangement of the R&D department.

Max. torque 1000 Nm (2 sizes of torque meters are used for measuring down to the minimum torque with the required accuracy. Torque meter is only available for smaller end suction pumps with free shaft end like Modular S, VAC and SA)
Max. voltage: 380V~420V/50Hz or 440V~480V/60Hz, VFD operation is available.  (voltage can be increased to 690 Volt via rental of a 400-690 Volt transformer - the sales department must arrange this in advance).
Vibration test Only done on request from customer or the R&D department.
Noise test Only done on request from customer or the R&D department. Noise measurements to be made while the pump is running in guaranteed duty point(s) (flow, head and speed) unless otherwise agreed. Custfomer to be informed that factory and piping noise might disturb the measurements. The noise is measured 1 meter away from the pump and 1.6 meters above the floor.
Pipe connections Inlet DN20 to DN500, outlet DN15 to DN500
Test medium Water ~20°C only
Temperature Room temperature
Max. speed: 3600 rpm (higher rpm can be measured if required)
Max. weight: 5000 kg for pump unit with motor. Forklift truck must be arranged for heavier units.

ROTAN PUMP TEST BENCH



ROTAN pumps are manufactured in accordance with DESMI's quality management system, which is certified by BVQI in accordance with the requirements of ISO 9001



On the ROTAN testbed, the pumps are tested both statically and dynamically. Static pressure testing is conducted to make sure that the pump do not leak and that they can maintain the specified maximum operating pressure. The dynamic test is conducted to ensure that the pump can deliver the specified volume of liquid at the specified pressures.



Furthermore, ROTAN pumps are tested within a number of additional criteria to make sure that the pumps are ready for operation.



more info on desmi rotan pumps

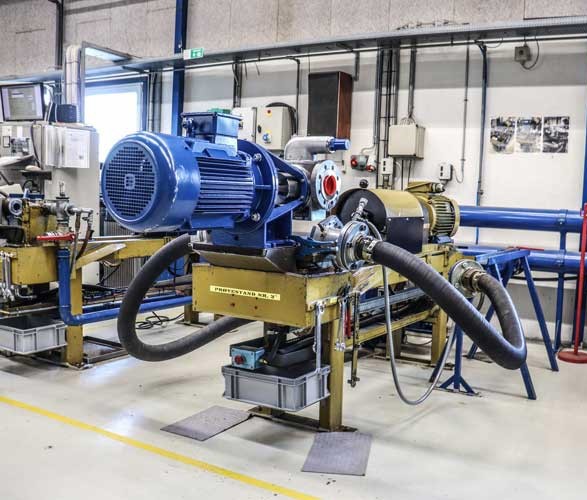

ROTAN testbed
