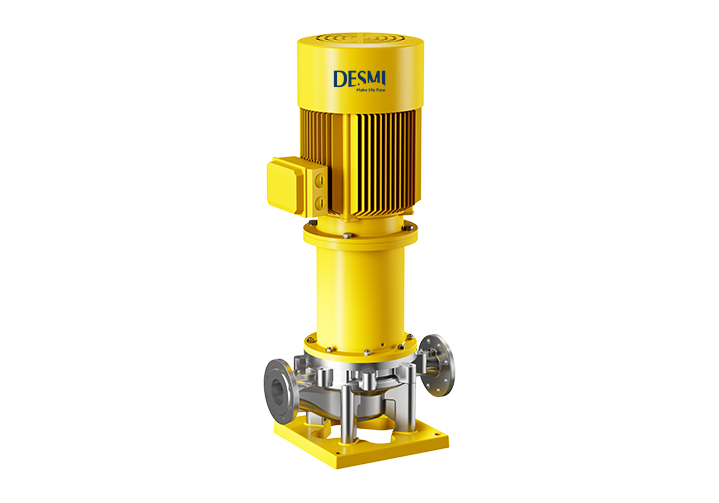

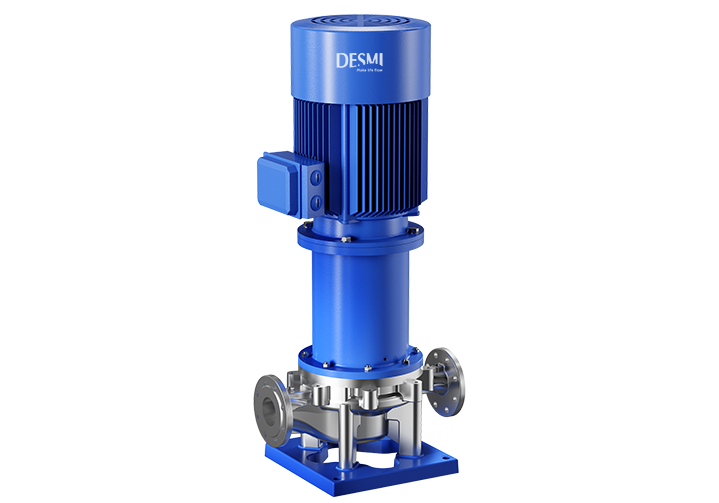

NSL Centrifugal Pump - Magnetically Driven

Centrifugal pumps with magnetic coupling

The magnetically driven pump is designed for energy efficiency, enhanced safety, and low maintenance. It is ideal for applications where no media leakage is allowed, making it well-suited for transferring valuable, hazardous, or environmentally sensitive fluids.

Request quote

Product information

Applications

Magnetic drive pumps are common used in applications where no pumping media leakage is allowed.

They can pump the following materials:

Methanol
Ethanol
Hydrocarbons (fuels)
Amine/Water Mixtures
Water
Sea Water
Glycol
Other coolant mixtures

Typical use cases include:

Methanol / Ammonia Fuel Supply System
Methanol / Ammonia Transfer
Methanol / Ammonia Bunkering
Methanol / Ammonia Production (Power-to-X)

Magnetically driven centrifugal pumps meet the requirements for:

Leak Prevention
High efficiency
Reduced Friction
Improved Reliability
Low Maintenance
Installation and serviceability
Energy Efficiency
Enhanced Safety
Environmental Benefits

Design Features

Magnetic Drive pumps use magnetic coupling to avoid leakage. By eliminating the need for expensive auxiliary shaft seal flush systems and minimising operational downtime for seal inspections or replacements, we provide a comprehensive solution that aligns with both safety and sustainability. With its compact design and small footprint, this pump offers convenient and flexible installation, particularly in enclosed spaces.

Why choose magnetic drive?

100% seal-less design – no leakage, no emissions
Ideal for toxic, hazardous, flammable, or valuable liquids
No seal system maintenance – reduced downtime and lower operating costs
Proven, reliable and efficient alternative to conventional shaft seal pumps

Technical data

Nominal Diameter (DN)	80 to 125
Flow rate - 50 Hz	Up to 320 m³/h (1400 US gpm)
Flow rate - 60 Hz	Up to 385 m³/h (1700 US gpm)
Head	Up to 138 m (453 ft) DOL
Pressure	Up to 16 bar
Temperature	Min. -40°C / Max. 140°C
Motor	Standard and EX motor
Viscosity Range	Min. 0.3 / Max 300 cSt
Starting Method	VFD or direct online (DOL)
ATEX approved	Yes

Materials	Specification
Pump casing	1.4436
Impeller	1.4436
Shaft	1.4460
Inner rotor hub	1.4057 & 1.4571
Magnet	NdFeB
Seal ring & sleeve	PEEK
Canister	PEEK

The pump wet parts are also available in other stainless steel.

Pumping of:

Methanol, Ethanol, Hydrocarbons (fuels), Ammonia, Amine/Water Mixtures, Water, Sea water, Glycol and other coolant mixtures

Note:
The pumps are designed for pumping liquids without solid/clogging particles.
These could cause premature failure of the pump bearings and/or mag-drive.

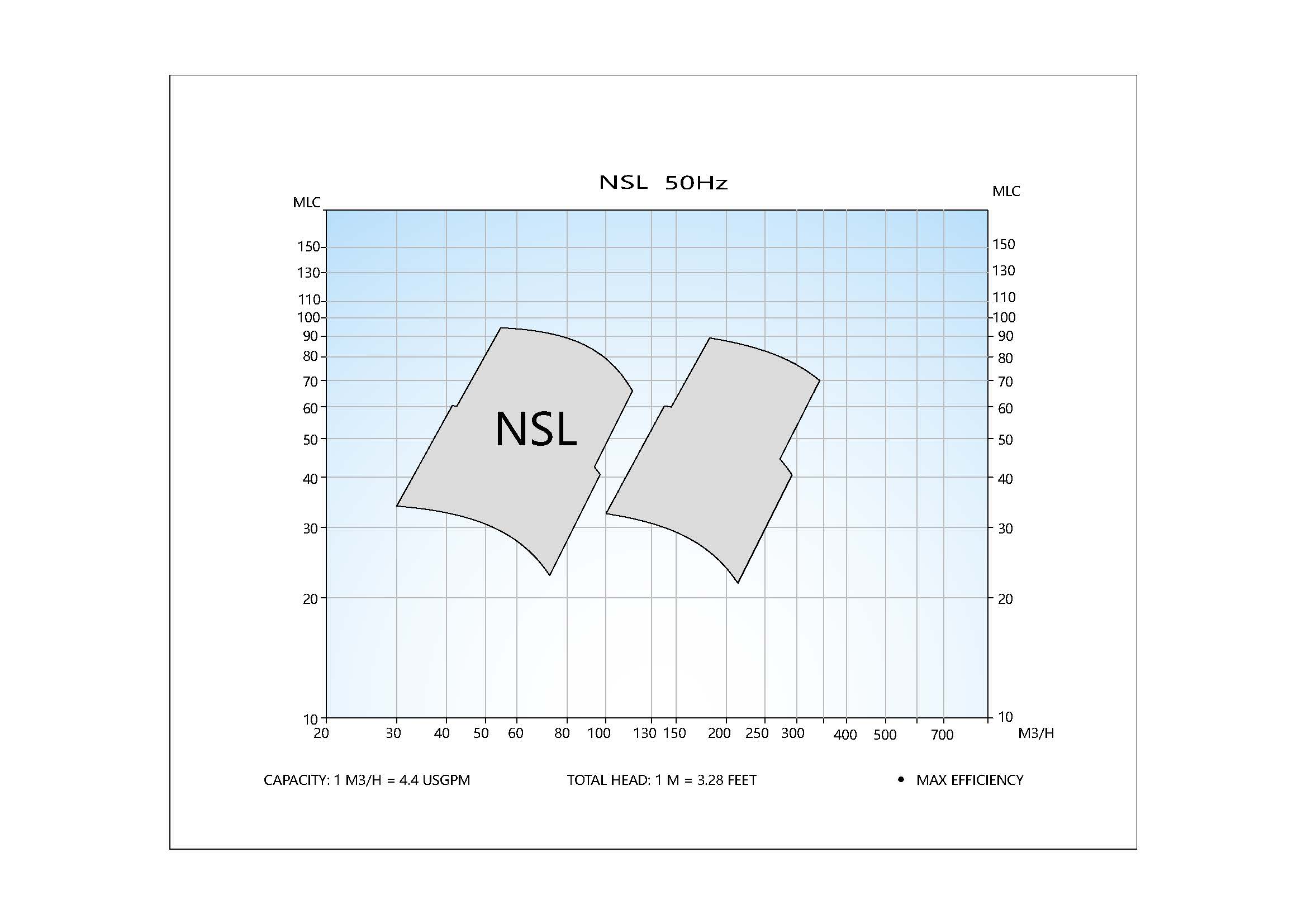

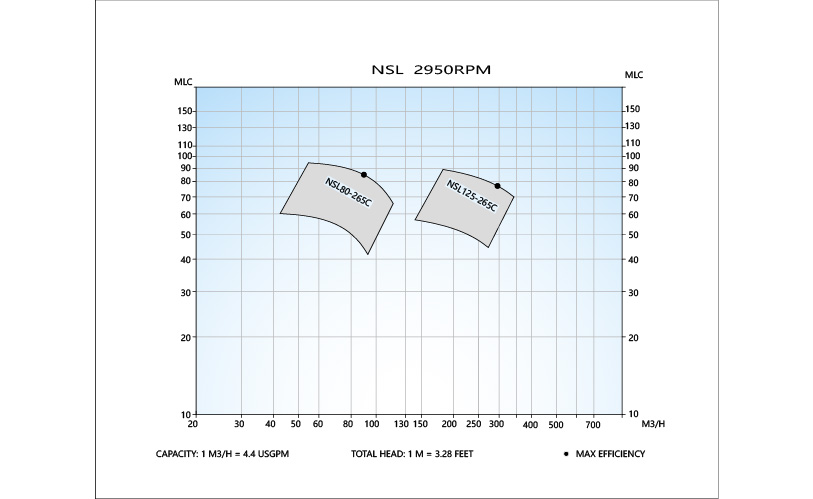

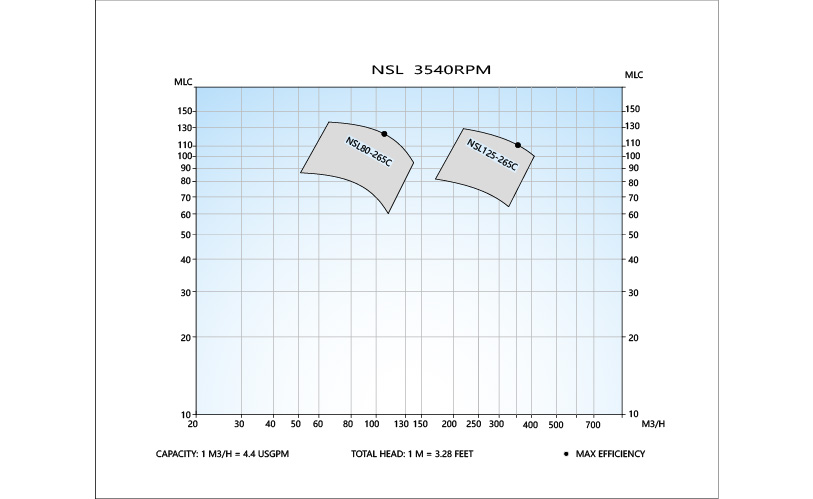

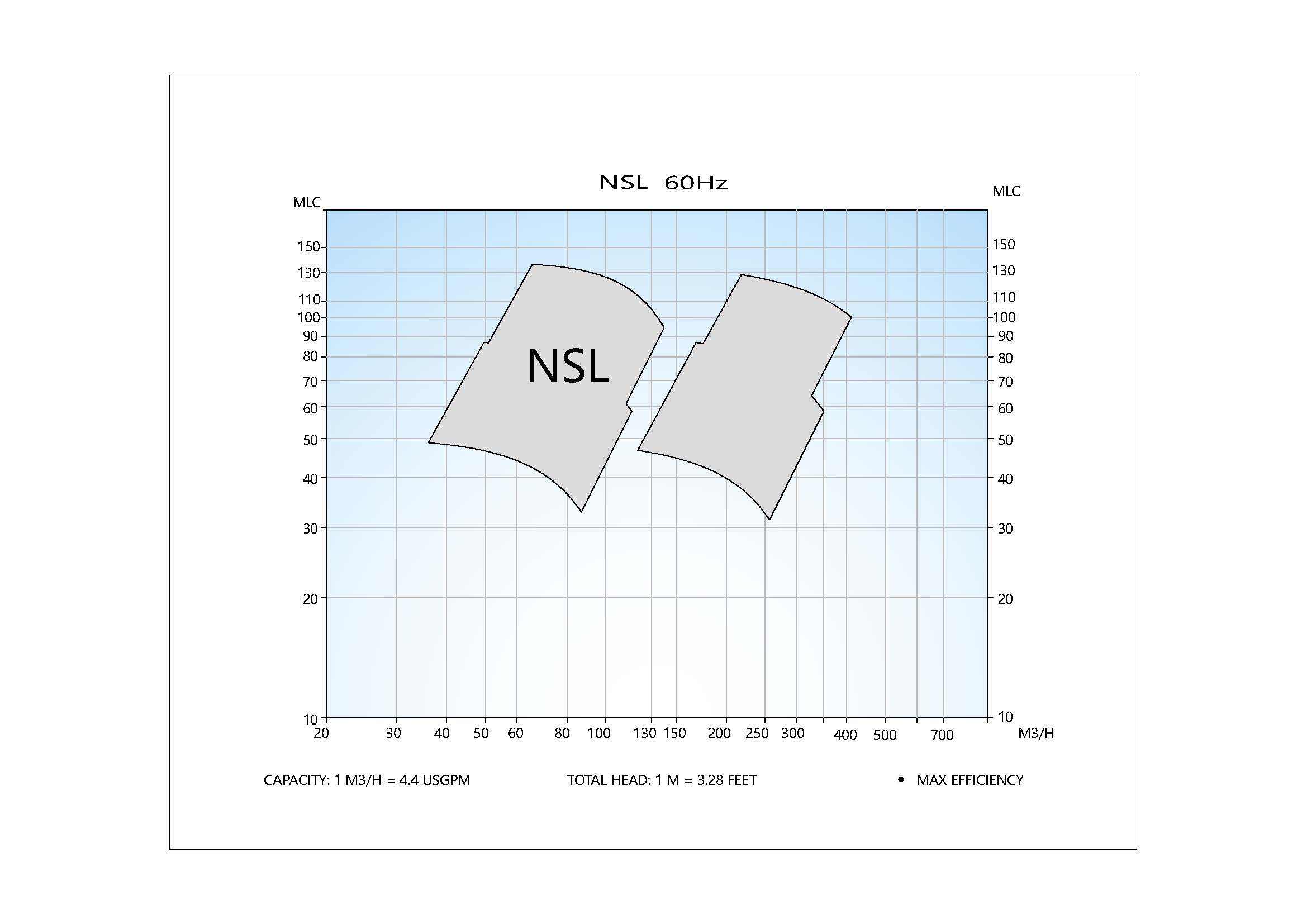

Pump curves

PDF
