CompactClean OptIMO
CompactClean OptIMO system
The CompactClean OptIMO BWMS provides optimized performance in IMO waters combined with strong performance in US territories.
The CompactClean OptIMO system is designed and tested according to the MPN testing methods under IMO. It means that the CompactClean OptIMO BWMS deploys an optimized and energy saving UV reactor to treat the ballast water, based on the same proven and high-quality technology as the DESMI CompactClean BWMS. This is proved by the CAPEX and OPEX savings.
CompactClean OptIMO
CompactClean OptIMO BWMS is designed for vessels operating globally or primarily within IMO-regulated waters.
The system automatically adjusts between IMO and USCG operation modes through dual-mode software, ensuring full compliance regardless of the destination port.
Even though CompactClean OptIMO is optimized for full flow in IMO waters, it can also be used in USCG waters. Furthermore, it maintains reliable performance even under low UV transmission rates — down to 40% in US waters and 35% in IMO mode. This makes CompactClean OptIMO ideal for vessels facing diverse water conditions and regulatory environments around the world.
| Primary use: | Vessels trading globally or primarily in IMO-regulated waters |
| Operating modes: | Dual-model operation for IMO and USCG compliance |
| Performance Optimization: | Full flow in IMO mode and strong performance in USCG mode |
| Automatic adjustment: | Dual-mode software sets treatment scheme based on destination port |
| Water quality capability: | Treats low UV transmission water down to 40% (USCG) and 35% (IMO) |
| Intended environment: | Global operation where both IMO and USCG standards apply |

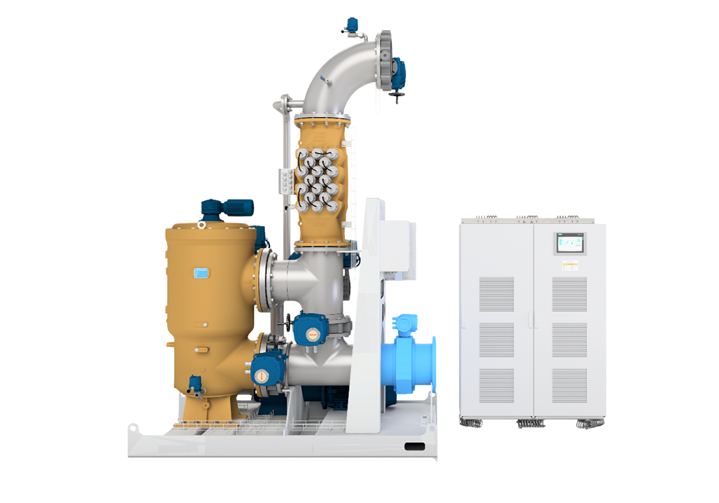

Max treatment (CompactClean OptIMO 1000 as example)
| IMO Ballast | 1040 m3/hr |
| IMO De‐Ballast | 1200 m3/hr |
| USCG Ballast | 1040 m3/hr |
| USCG De‐Ballast | 1131 m3/hr |
Specifications
| UV reactor size | 108 kW |
| Filter size | 1040 m3/hr |
| Main pipe dim. | DN300 |
Available sizes of the CompactClean OptIMO BWMS
The CompactClean OptIMO BWMS is available in following sizes (treatment rated capacities):
|
CompactClean OptIMO (Model) |
Max Flow (IMO mode) Ballast [m3/h] |
Max Flow (IMO mode) De-Ballast [m3/h] |
Max Flow (USSG mode) Ballast [m3/h] |
Max Flow (USCG mode) De-Ballast [m3/h] |
Max flow (USCG Flow fresh water) [m3/h] |
| 50 |
50 |
60 |
50 |
52 |
40 |
| 55 |
55 |
60 |
52 |
52 |
40 |
| 100 |
100 |
135 |
111 |
111 |
85 |
| 135 |
135 |
135 |
111 |
111 |
85 |
| 170 |
170 |
240 |
170 |
208 |
160 |
| 190 |
190 |
240 |
190 |
208 |
160 |
| 340 | 340 | 370 | 325 | 325 | 250 |
| 500 | 510 | 510 | 442 | 442 | 340 |
| 750 | 750 | 750 | 650 | 650 | 500 |
| 1000 | 1040 | 1200 | 1040 | 1131 | 870 |
| 1500 | 1500 | 1650 | 1500 | 1534 | 1180 |
| 2100 | 2100 | 2500 | 2100 | 2262 | 1740 |
CompactClean Ballast Water Management System has a great number of special features
✔ Smooth Port Operations
✔ High Efficiency Keeps your OPEX Down
✔ Integrated and Compliant Solution for Ballast Stripping Operations
✔ Fully Automated with Easy Integration into Ship Automation System
✔ Intelligent Control
✔ Long Lifetime of Components Gives you Reliable Treatment and Low OPEX
Smooth port operations
Automatic adjustment of treatment to handle dirty or low-UV water without triggering alarms or halting discharge. This keeps port operations running smoothly and avoids costly delays.
High efficiency and low OPEX
The UV chambers in CompactClean are designed through extensive CFD simulations to achieve maximum treatment efficiency. By utilizing every kilowatt of UV light effectively, it reduces power consumption and operational costs.
Integrated ballast stripping solution
The CompactClean system uses its filter backflush pump as a dedicated stripping pump during de-ballasting, eliminating the need for ejectors. This ensures full IMO and USCG compliance and reduces wear by preventing untreated water from entering the system. One system, one pump – multiple functions.
Fully automated operation
PLC-controlled system integrates easily with ship automation. Simple one-touch operation for ballasting and de-ballasting ensures effortless compliance.
Durable construction
The CompactClean UV units are made of cast Nickel-Alu-Bronze with proven sea-water corrosion resistance. This ensures a long lifetime, minimizing maintenance and downtime.
CC OptIMO; IECEx Skid Mounted
- English
CC OptIMO; IECEx Loose components
- English
CC OptIMO; IECEx Low Skid Mounted
- English
CC OptIMO; Non-EX Loose components
- English
CC OptIMO 55 For Fishing Vessels
- English
CC OptIMO; Non-EX Skid Mounted
- English
CompactClean Ballast Water Management System
DFDS Regina Seaways - CompactClean Ballast water treatment system installation
Ballast Water Management Made Easy
Curious about knowing even more?
Explore related resources and tools for the CompactClean OptIMO BWMS — from system configurations and UV transmission insights to operator training and digital support solutions.
Standard Systems & Configurations
Our systems can be delivered in many different sizes and as loose components, skidmounted or containerized.
UV Transmission
The unique UV unit is designed and manufactured by DESMI. The special shape ensures the highest possible applied UV dose to all organisms in the treated water.
Service App
DESMI CompactClean BWMS Service & Maintenance Tool.
